Portal Annotated Training Guide (Complete)

This guide is fully callout-based and covers every screenshot referenced in the portal user guide. Use it for end-to-end training walkthroughs with numbered focus areas on each page.

1. Landing

1.1 /login

Source Screenshot: 45-landing-page.png

Route / Context: /login

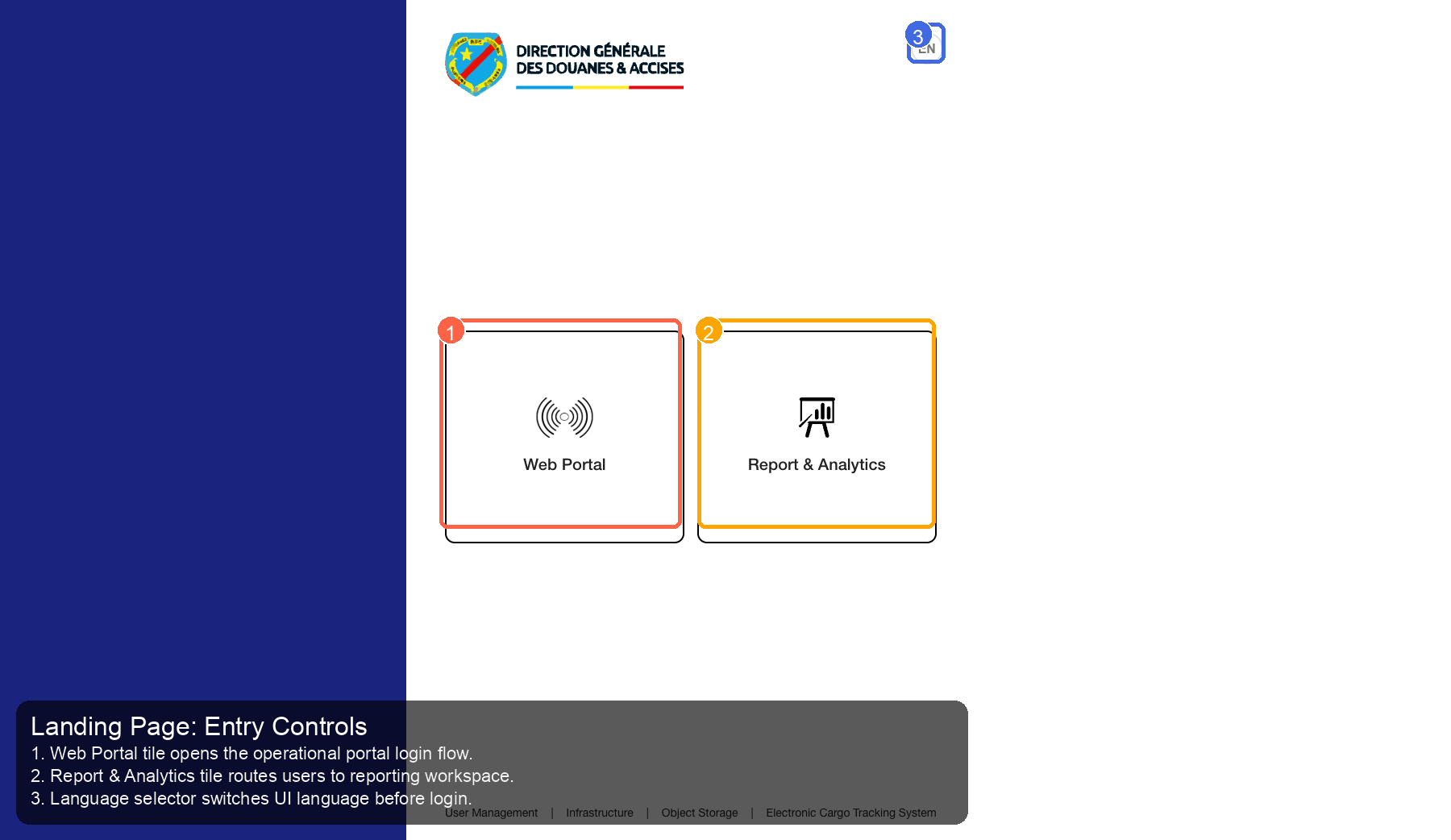

Annotated 45-landing-page.png

Callout Focus Training Instruction Validation
1 Navigation Context Web Portal tile opens the operational portal login flow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Report & Analytics tile routes users to reporting workspace. Changing this control updates page state as expected.
3 Primary Workspace Language selector switches UI language before login. Primary content renders without blank/error state.

2. Auth

2.1 Keycloak login

Source Screenshot: 10-keycloak-login.png

Route / Context: Keycloak login

Annotated 10-keycloak-login.png

Callout Focus Training Instruction Validation
1 Navigation Context Username or email field for portal identity. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Password field with visibility toggle on right. Changing this control updates page state as expected.
3 Primary Workspace Sign In button submits credentials. Primary content renders without blank/error state.
4 Actions / Operations Language dropdown for login page localization. Action executes expected operation without runtime error.

3. Home

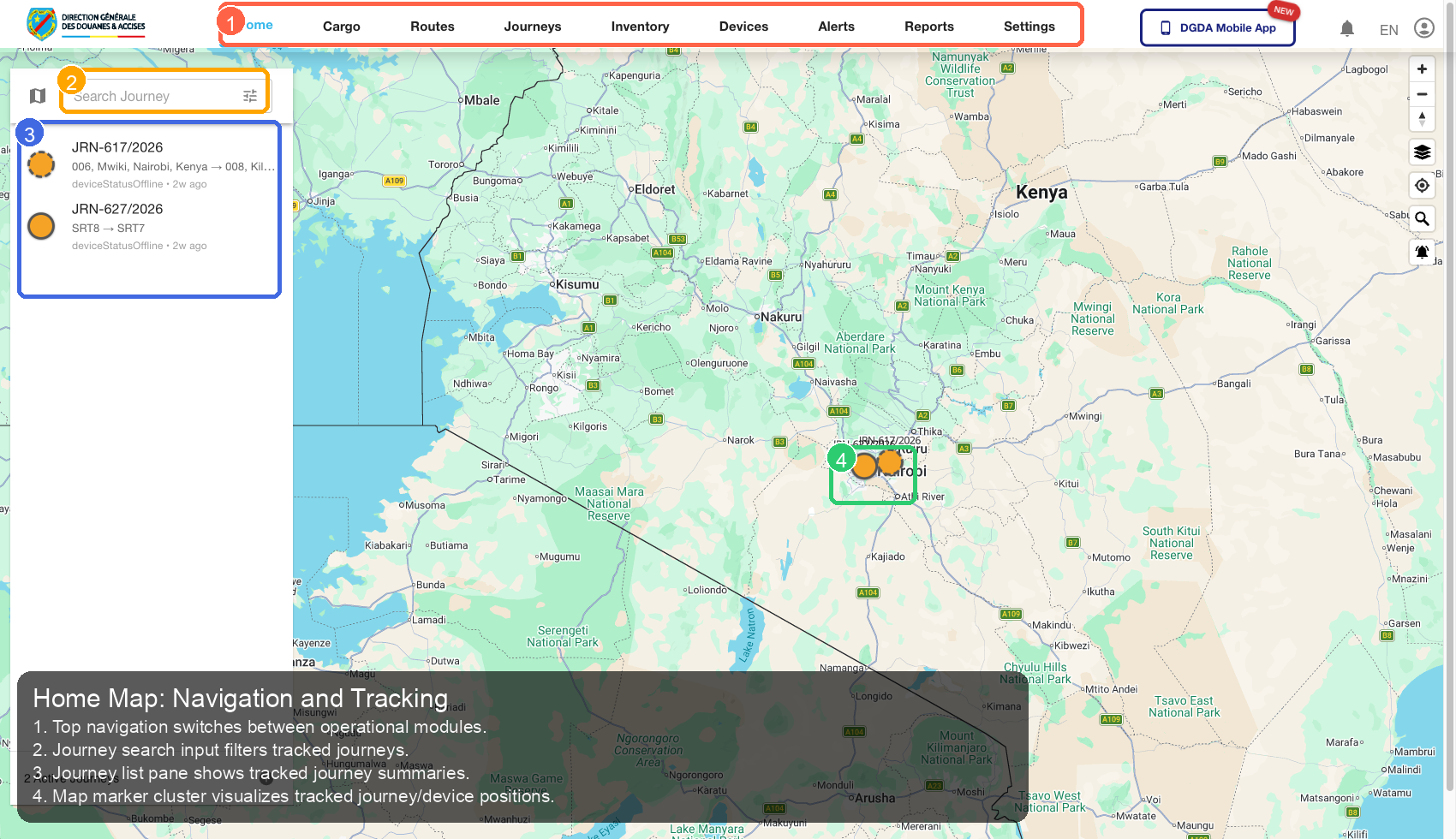

3.1 /

Source Screenshot: 11-home-map.png

Route / Context: /

Annotated 11-home-map.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation switches between operational modules. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Journey search input filters tracked journeys. Changing this control updates page state as expected.
3 Primary Workspace Journey list pane shows tracked journey summaries. Primary content renders without blank/error state.
4 Actions / Operations Map marker cluster visualizes tracked journey/device positions. Action executes expected operation without runtime error.

4. Cargo

4.1 /cargo/unassigned-cargo

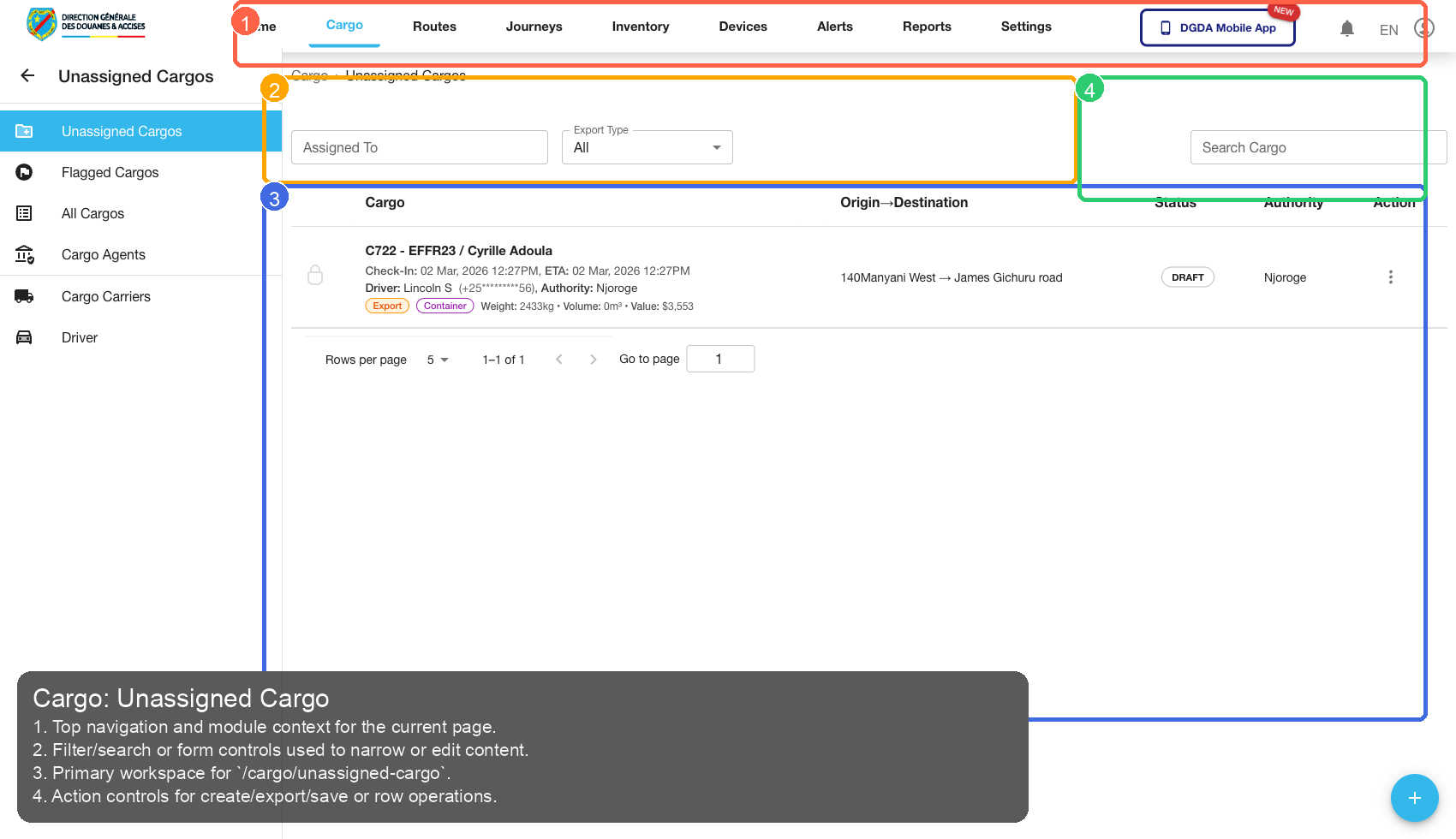

Source Screenshot: 12-cargo-unassigned.png

Route / Context: /cargo/unassigned-cargo

Annotated 12-cargo-unassigned.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /cargo/unassigned-cargo. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

4.2 /cargo/all-cargos

Source Screenshot: 13-cargo-all-cargos.png

Route / Context: /cargo/all-cargos

Annotated 13-cargo-all-cargos.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /cargo/all-cargos. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

4.3 /cargo/assigned-cargo

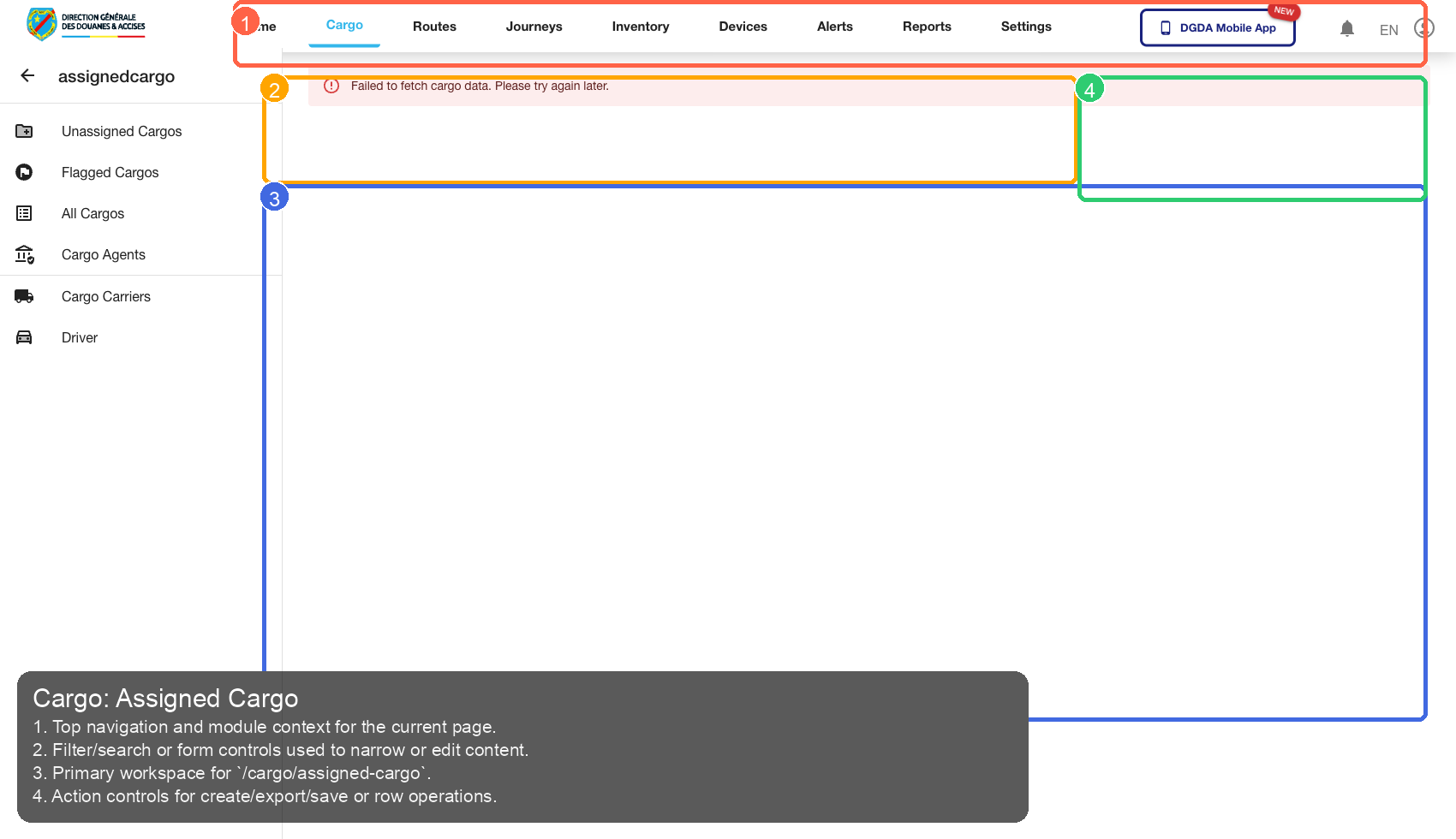

Source Screenshot: 14-cargo-assigned.png

Route / Context: /cargo/assigned-cargo

Annotated 14-cargo-assigned.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /cargo/assigned-cargo. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

4.4 /cargo/agents-list

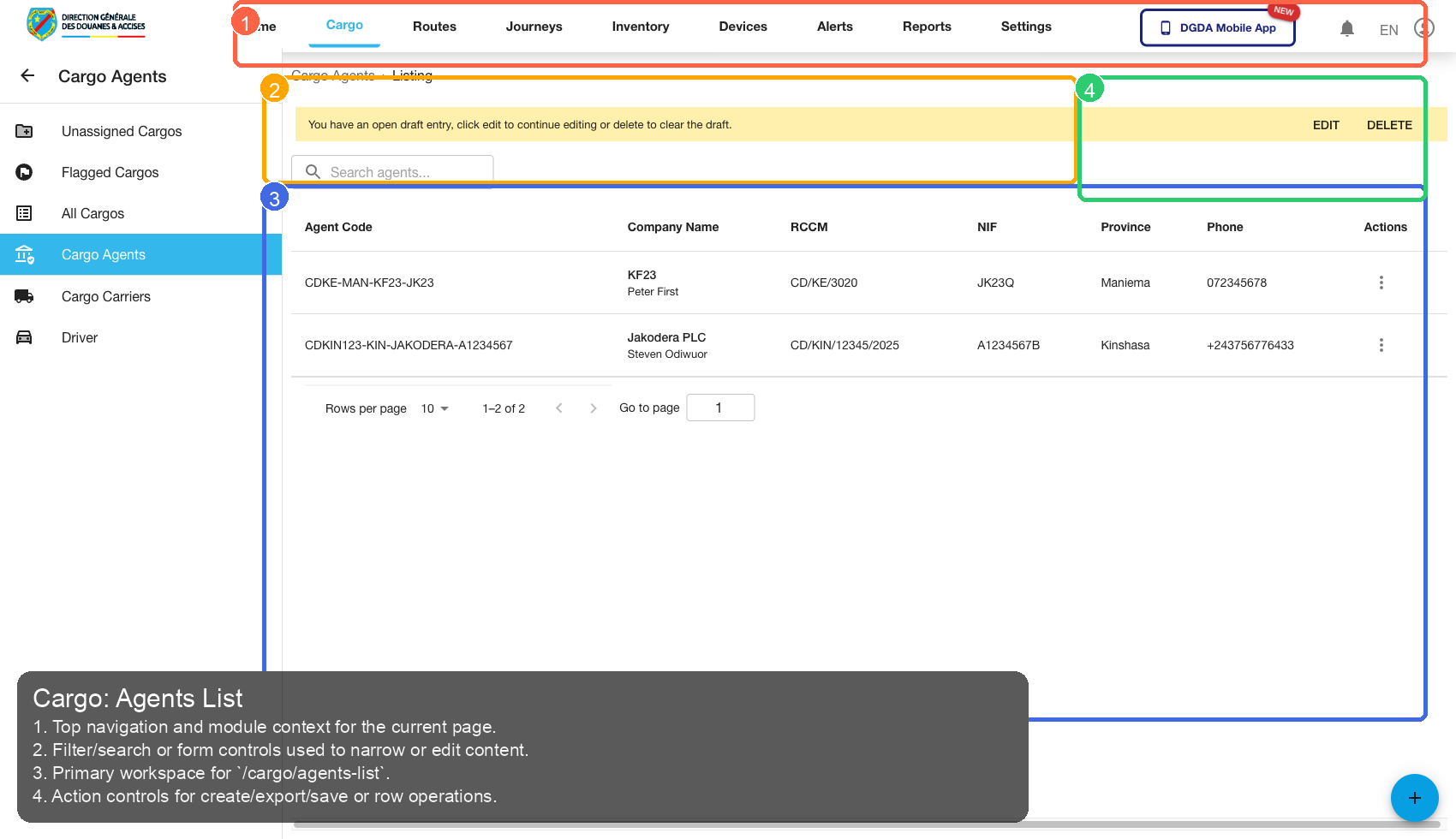

Source Screenshot: 15-cargo-agents.png

Route / Context: /cargo/agents-list

Annotated 15-cargo-agents.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /cargo/agents-list. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

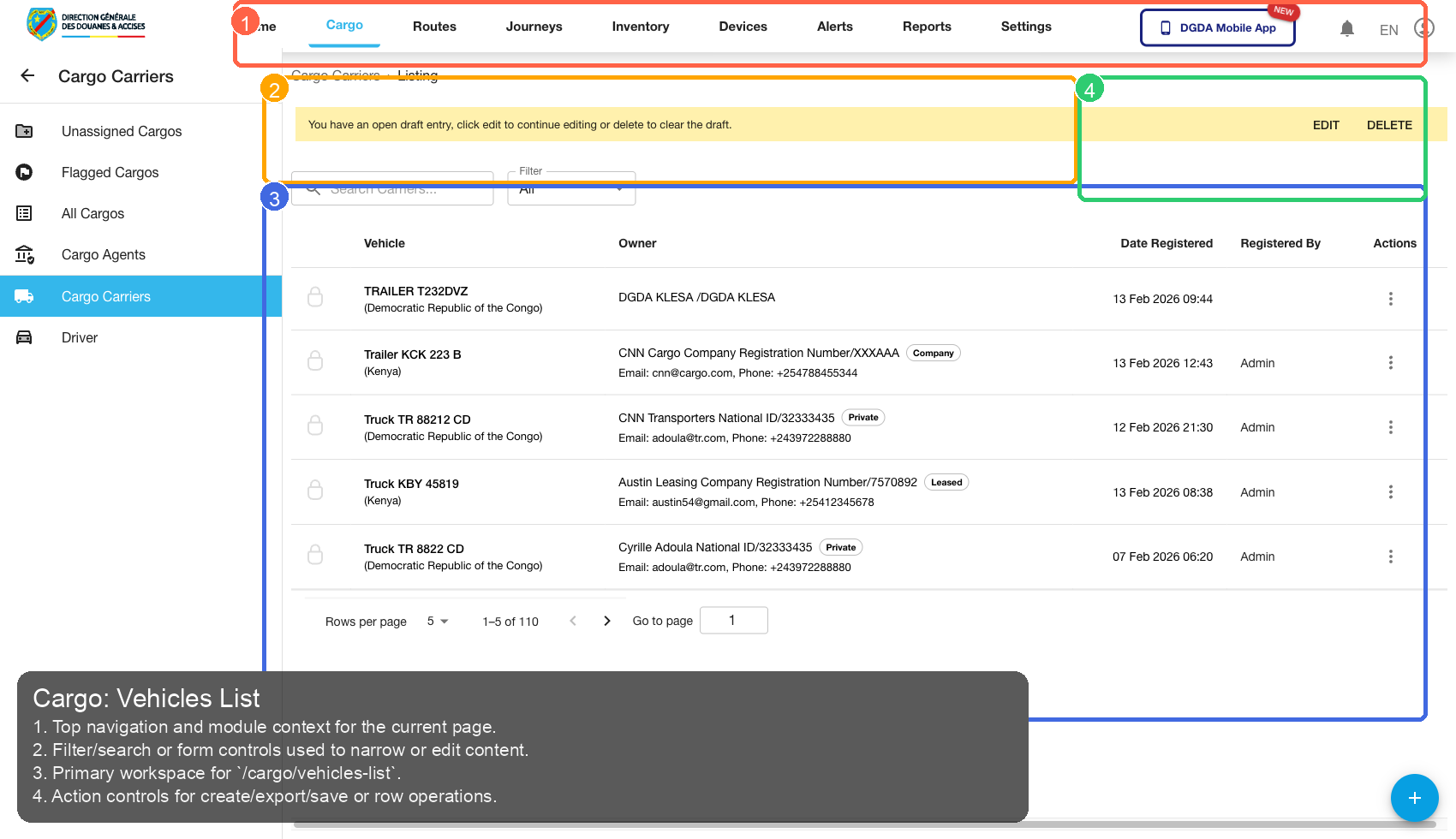

4.5 /cargo/vehicles-list

Source Screenshot: 16-cargo-vehicles.png

Route / Context: /cargo/vehicles-list

Annotated 16-cargo-vehicles.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /cargo/vehicles-list. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

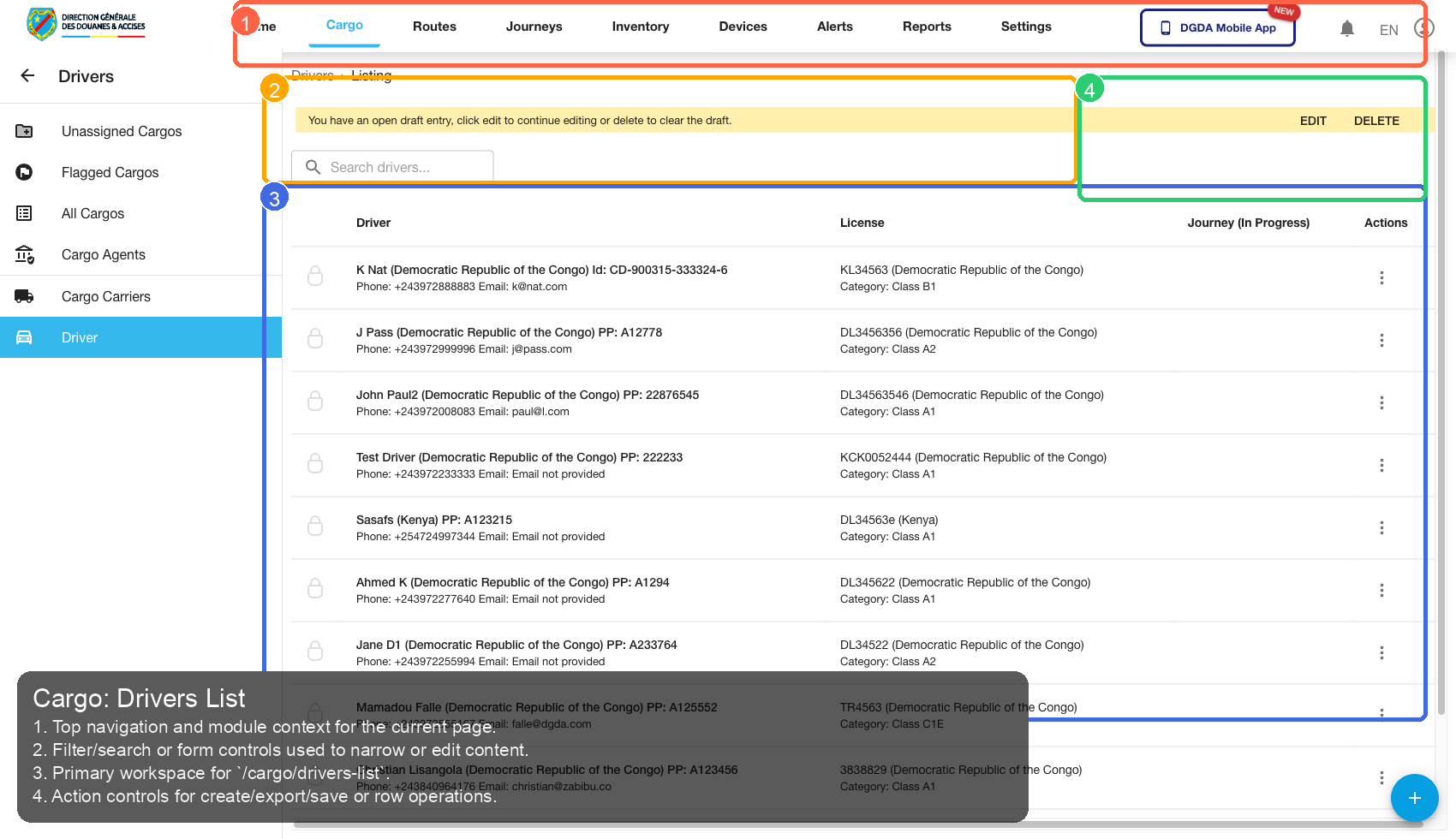

4.6 /cargo/drivers-list

Source Screenshot: 17-cargo-drivers.png

Route / Context: /cargo/drivers-list

Annotated 17-cargo-drivers.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /cargo/drivers-list. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

4.7 /cargo/create-cargo

Source Screenshot: 37-cargo-create-cargo.png

Route / Context: /cargo/create-cargo

Annotated 37-cargo-create-cargo.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /cargo/create-cargo. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

5. Journey

5.1 /journey/active

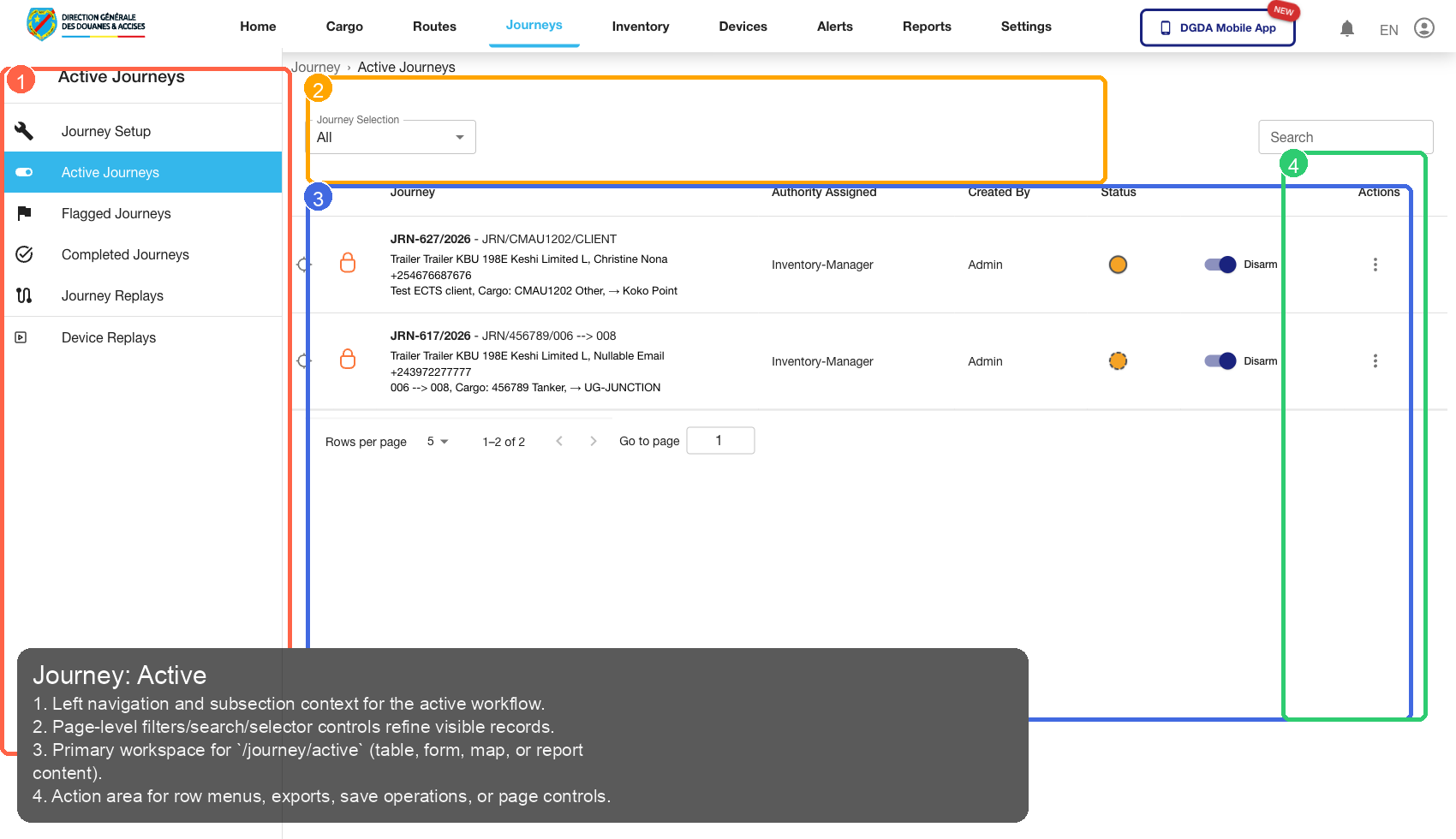

Source Screenshot: 18-journey-active.png

Route / Context: /journey/active

Annotated 18-journey-active.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /journey/active (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

5.2 /journey/completed

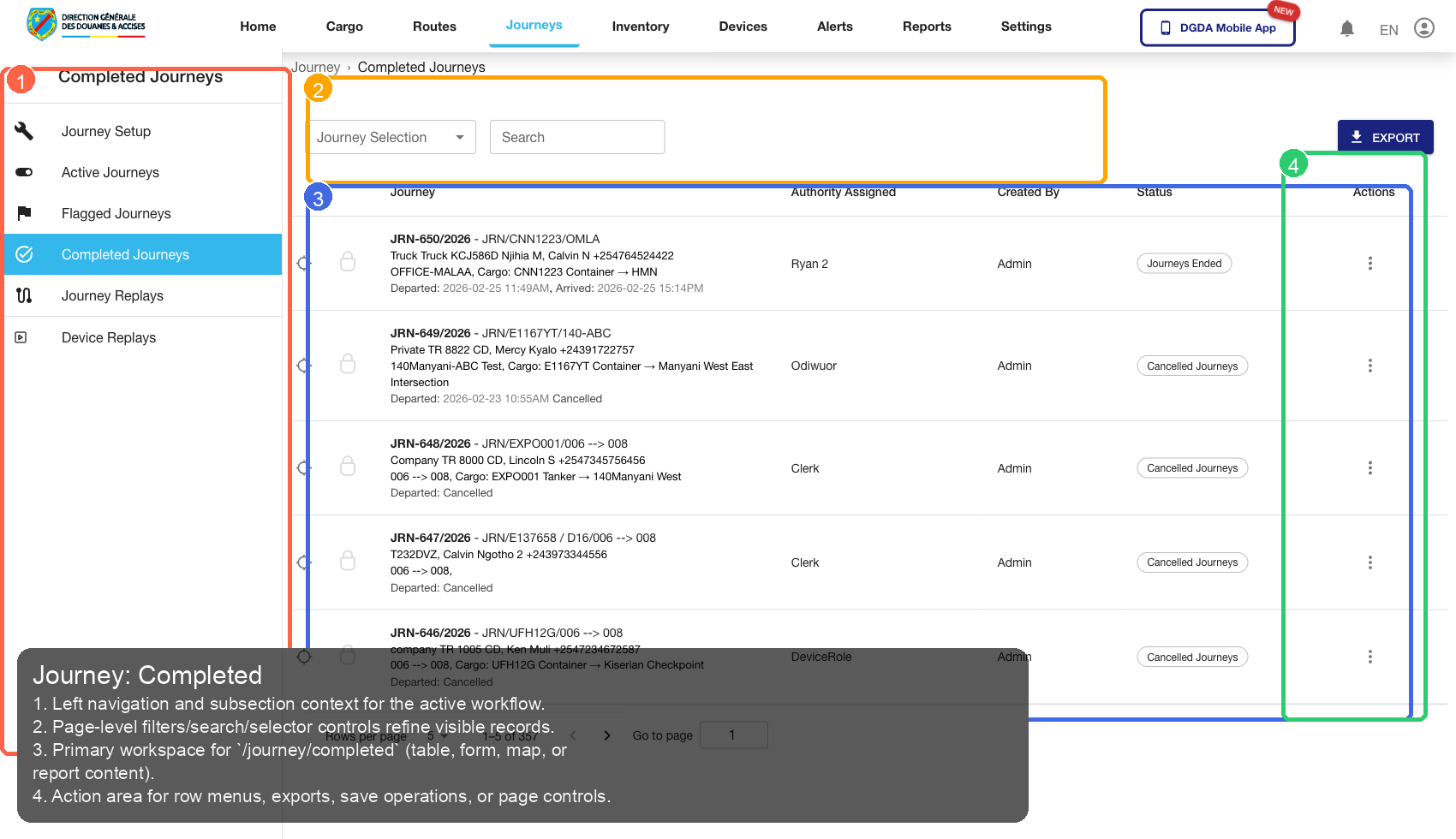

Source Screenshot: 19-journey-completed.png

Route / Context: /journey/completed

Annotated 19-journey-completed.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /journey/completed (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

5.3 /journey/active click flow

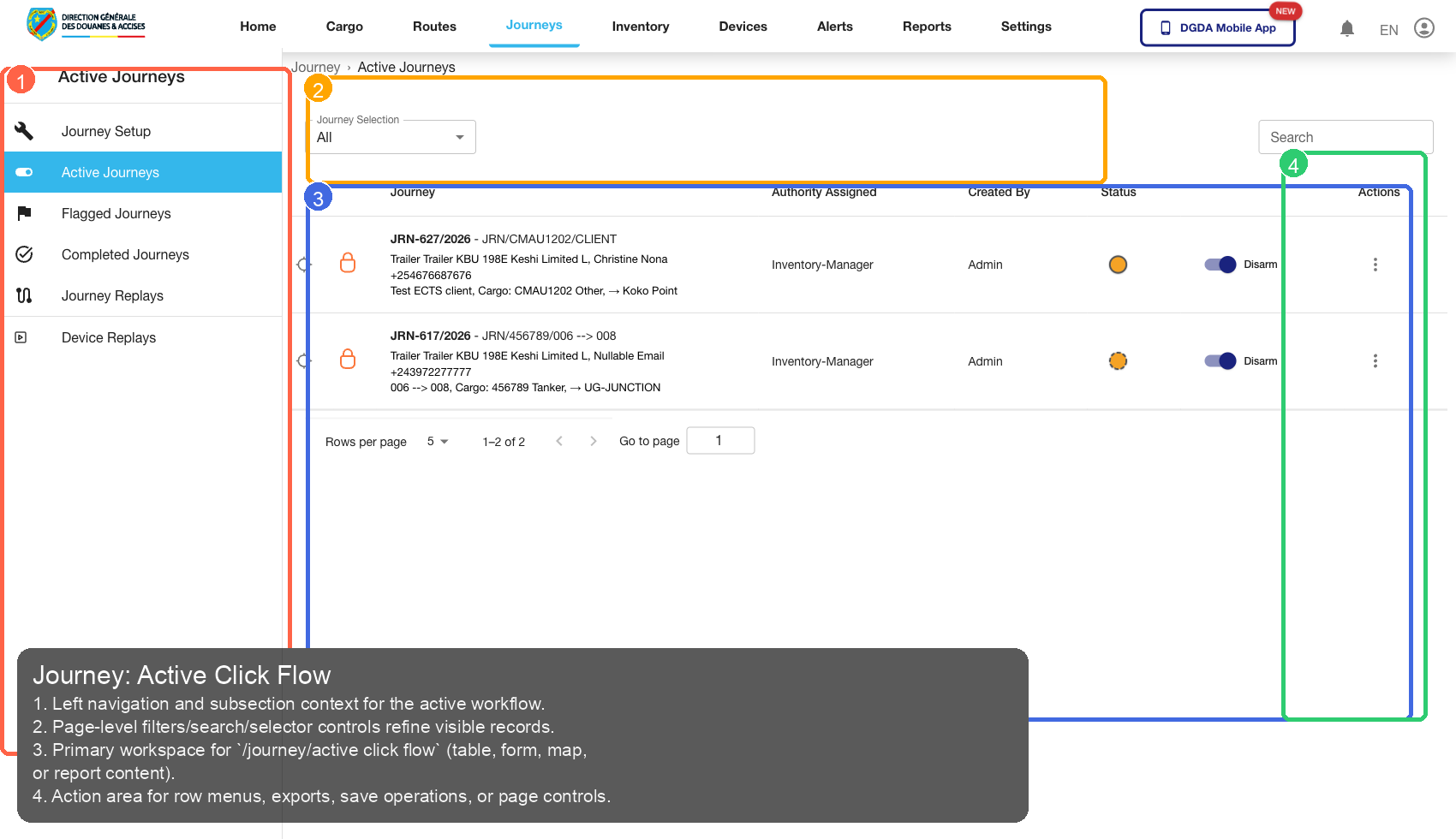

Source Screenshot: 66-journey-active-before-click.png

Route / Context: /journey/active click flow

Annotated 66-journey-active-before-click.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /journey/active click flow (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

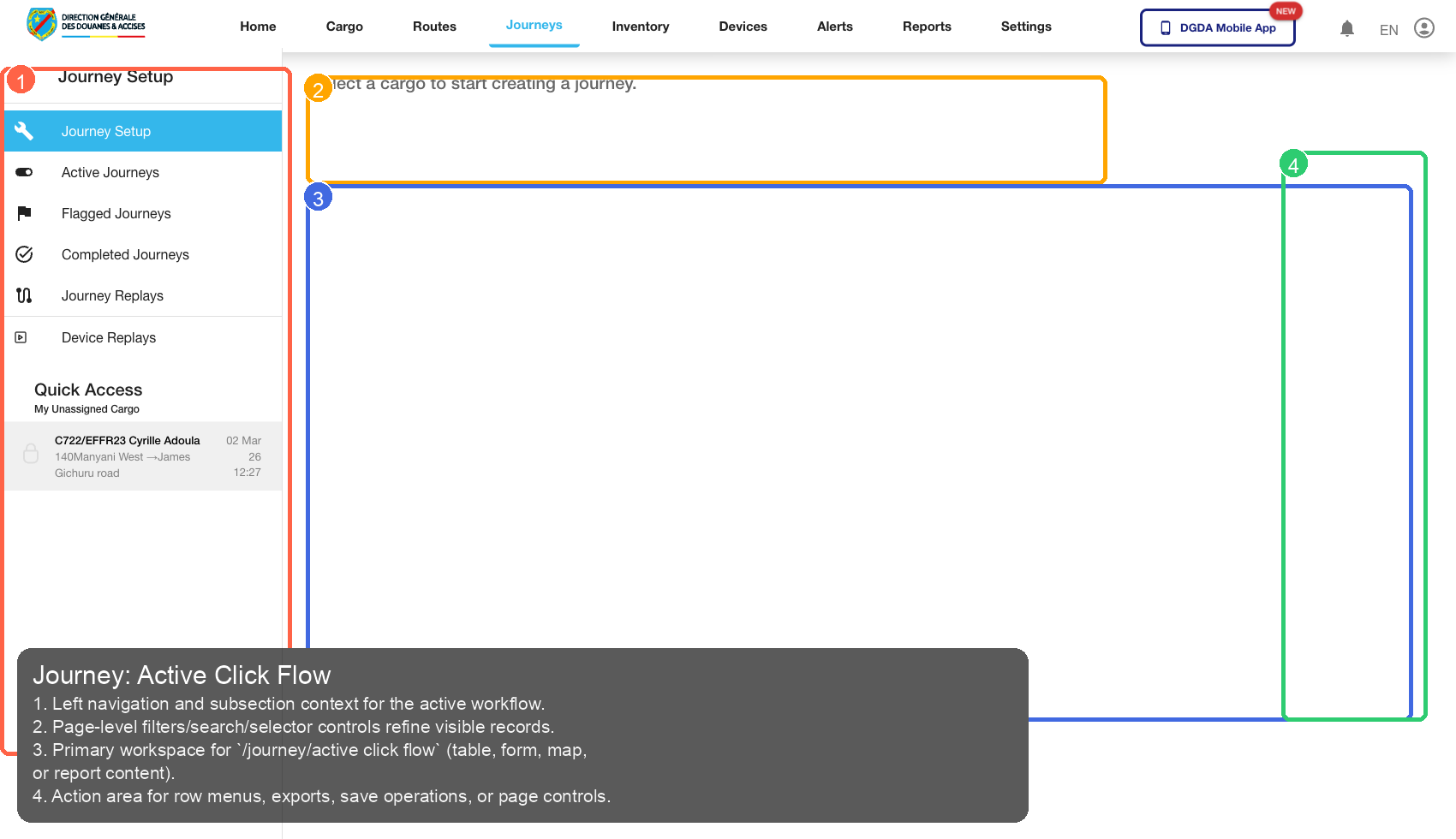

5.4 /journey/active click flow

Source Screenshot: 67-journey-clicked-detail.png

Route / Context: /journey/active click flow

Annotated 67-journey-clicked-detail.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /journey/active click flow (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

5.5 /journey/completed click flow

Source Screenshot: 68-journey-completed-before-click.png

Route / Context: /journey/completed click flow

Annotated 68-journey-completed-before-click.png

Callout Focus Training Instruction Validation
1 Navigation Context Completed Journeys sub-menu is selected in left navigation. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Journey Selection filter narrows completed records. Changing this control updates page state as expected.
3 Primary Workspace Search box filters journey rows by keyword/ID. Primary content renders without blank/error state.
4 Actions / Operations Export button downloads completed journey data. Action executes expected operation without runtime error.
5 Additional Control Row action menu (kebab) opens journey-specific operations. Control behaves consistently and remains interactive.

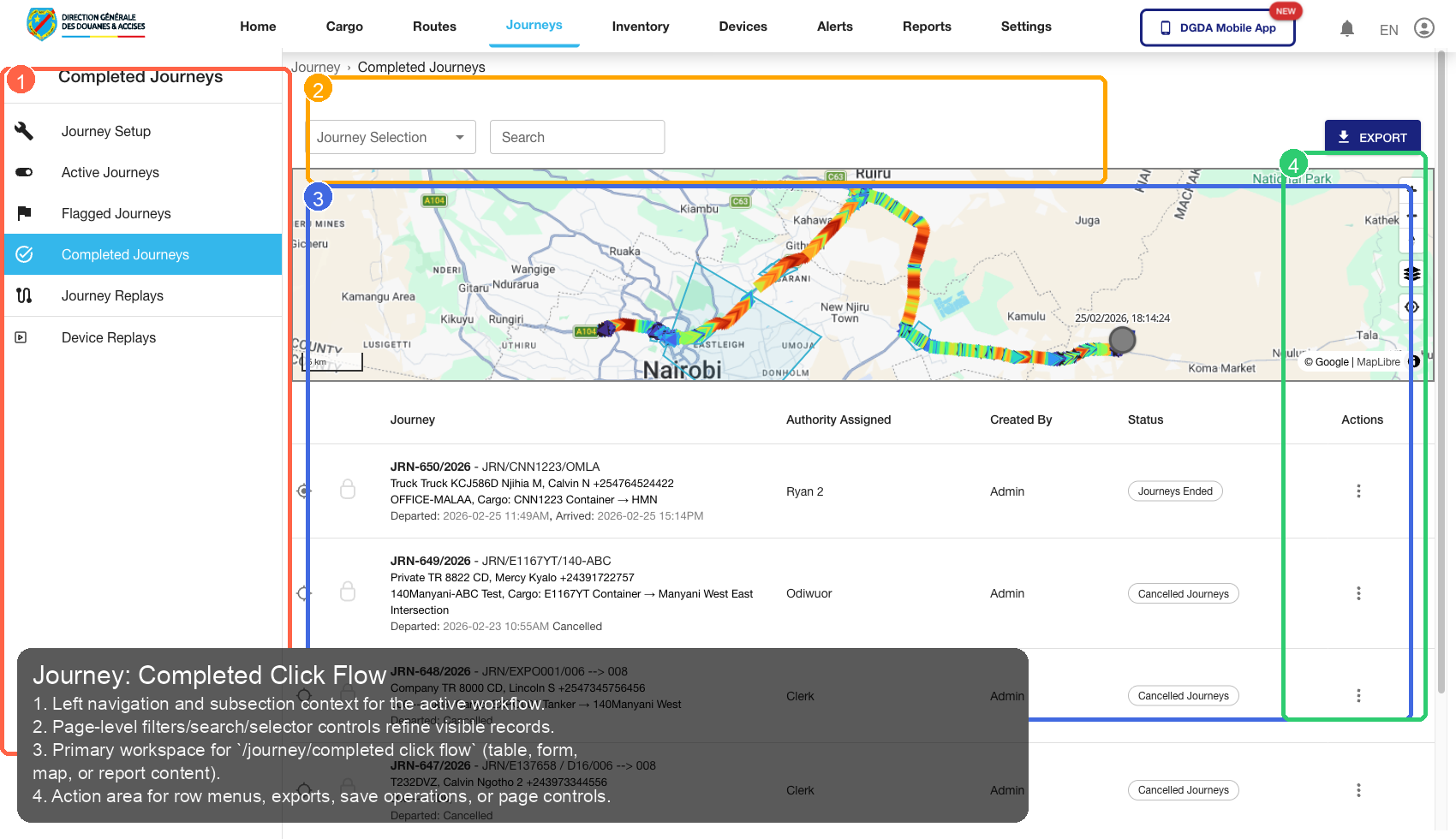

5.6 /journey/completed click flow

Source Screenshot: 69-journey-completed-clicked.png

Route / Context: /journey/completed click flow

Annotated 69-journey-completed-clicked.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /journey/completed click flow (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

5.7 /journey/completed click flow

Source Screenshot: 70-journey-row-view.png

Route / Context: /journey/completed click flow

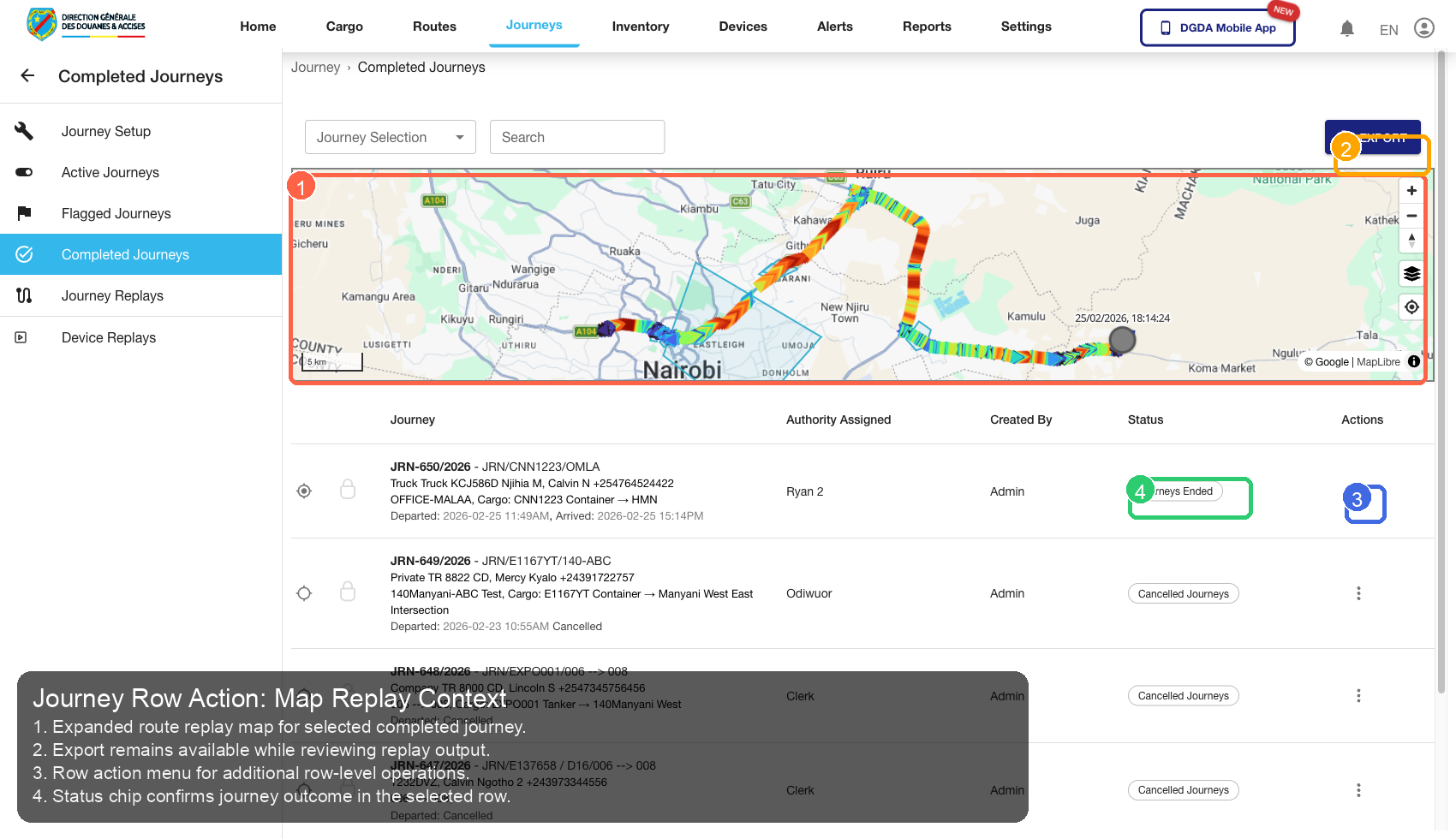

Annotated 70-journey-row-view.png

Callout Focus Training Instruction Validation
1 Navigation Context Expanded route replay map for selected completed journey. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Export remains available while reviewing replay output. Changing this control updates page state as expected.
3 Primary Workspace Row action menu for additional row-level operations. Primary content renders without blank/error state.
4 Actions / Operations Status chip confirms journey outcome in the selected row. Action executes expected operation without runtime error.

5.8 /journey/create-journey

Source Screenshot: 38-journey-create-journey.png

Route / Context: /journey/create-journey

Annotated 38-journey-create-journey.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /journey/create-journey (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

6. Routes

6.1 /routes/list

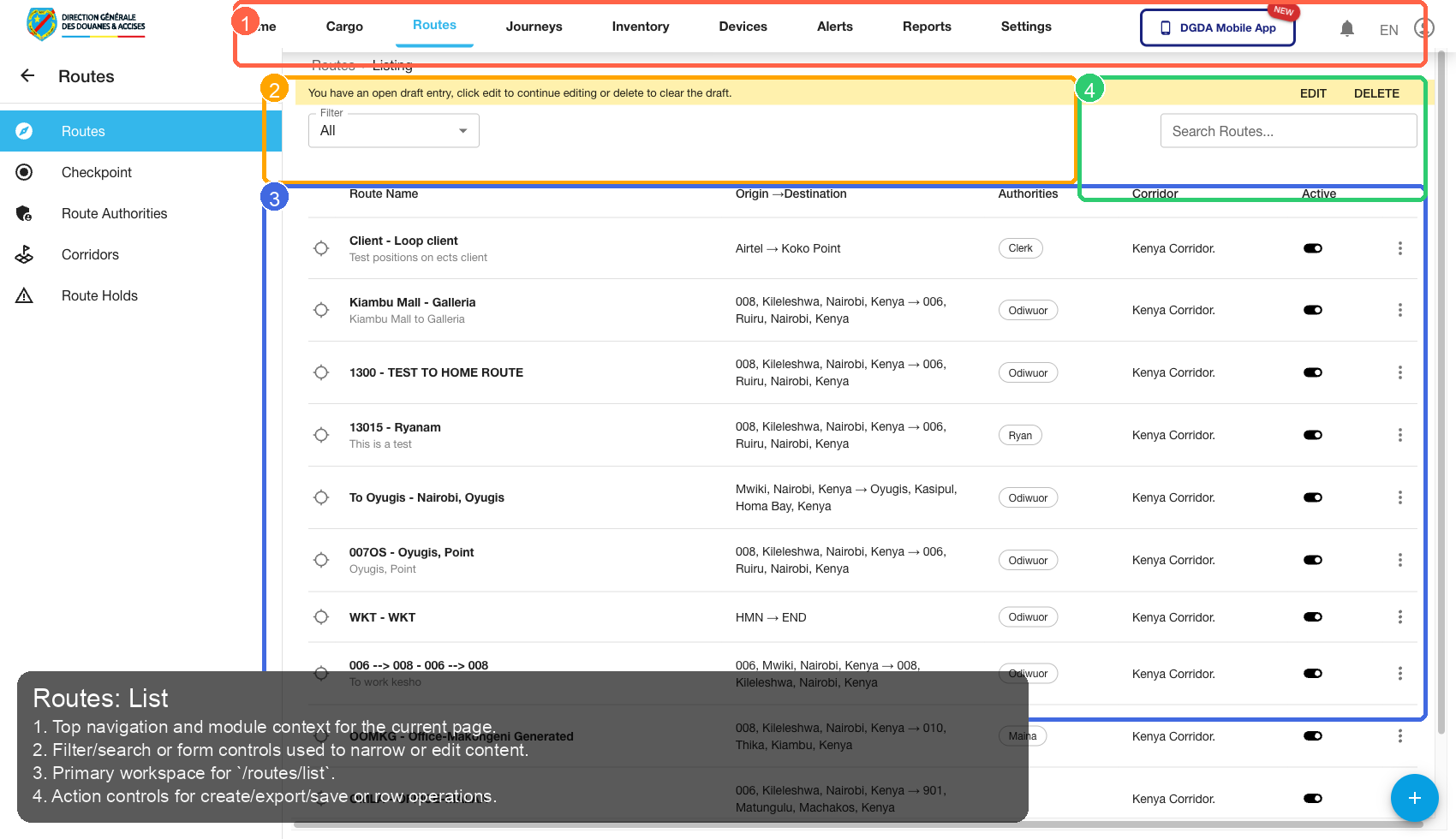

Source Screenshot: 20-routes-list.png

Route / Context: /routes/list

Annotated 20-routes-list.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /routes/list. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

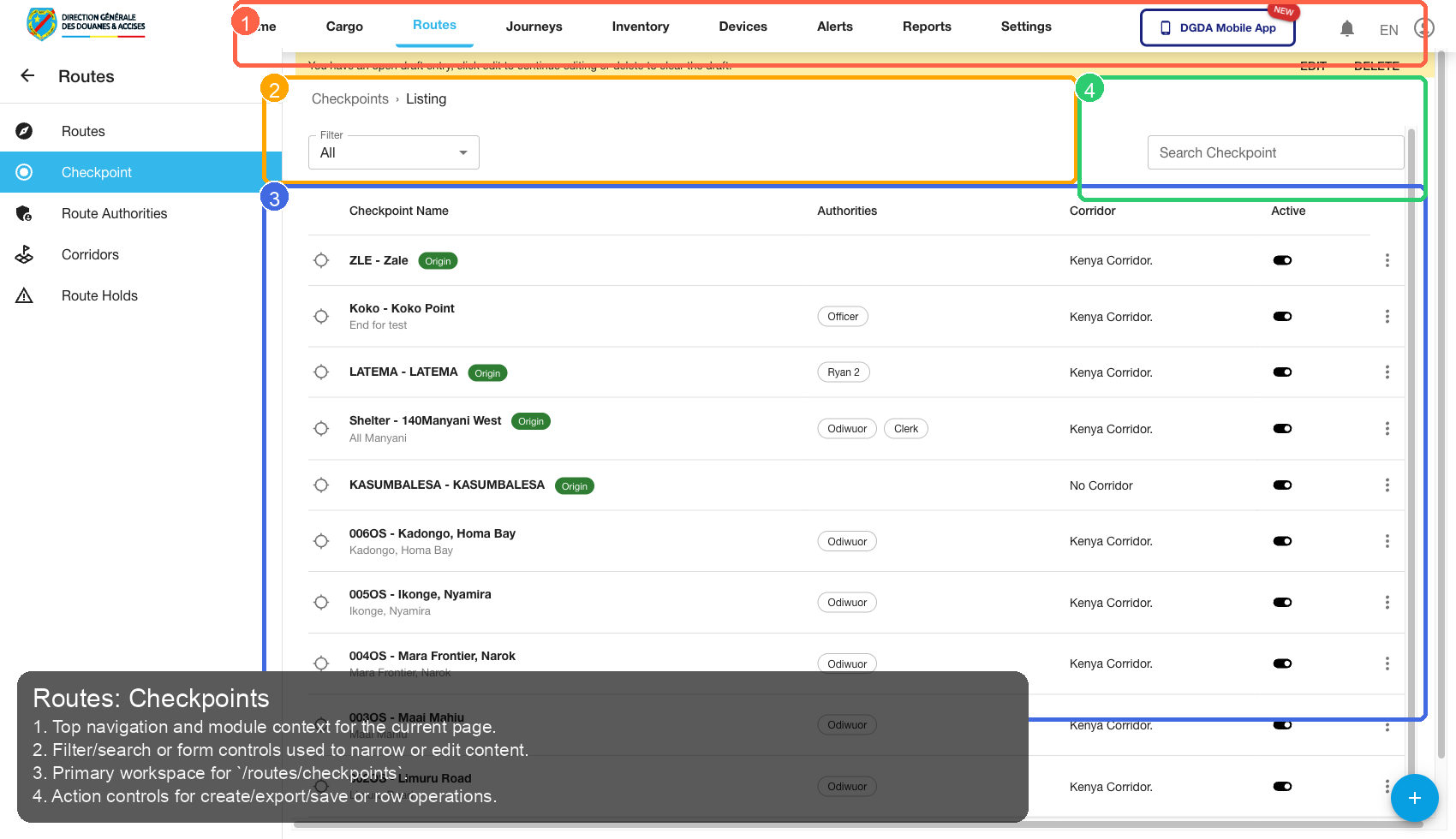

6.2 /routes/checkpoints

Source Screenshot: 21-routes-checkpoints.png

Route / Context: /routes/checkpoints

Annotated 21-routes-checkpoints.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /routes/checkpoints. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

6.3 /routes/route-authorities

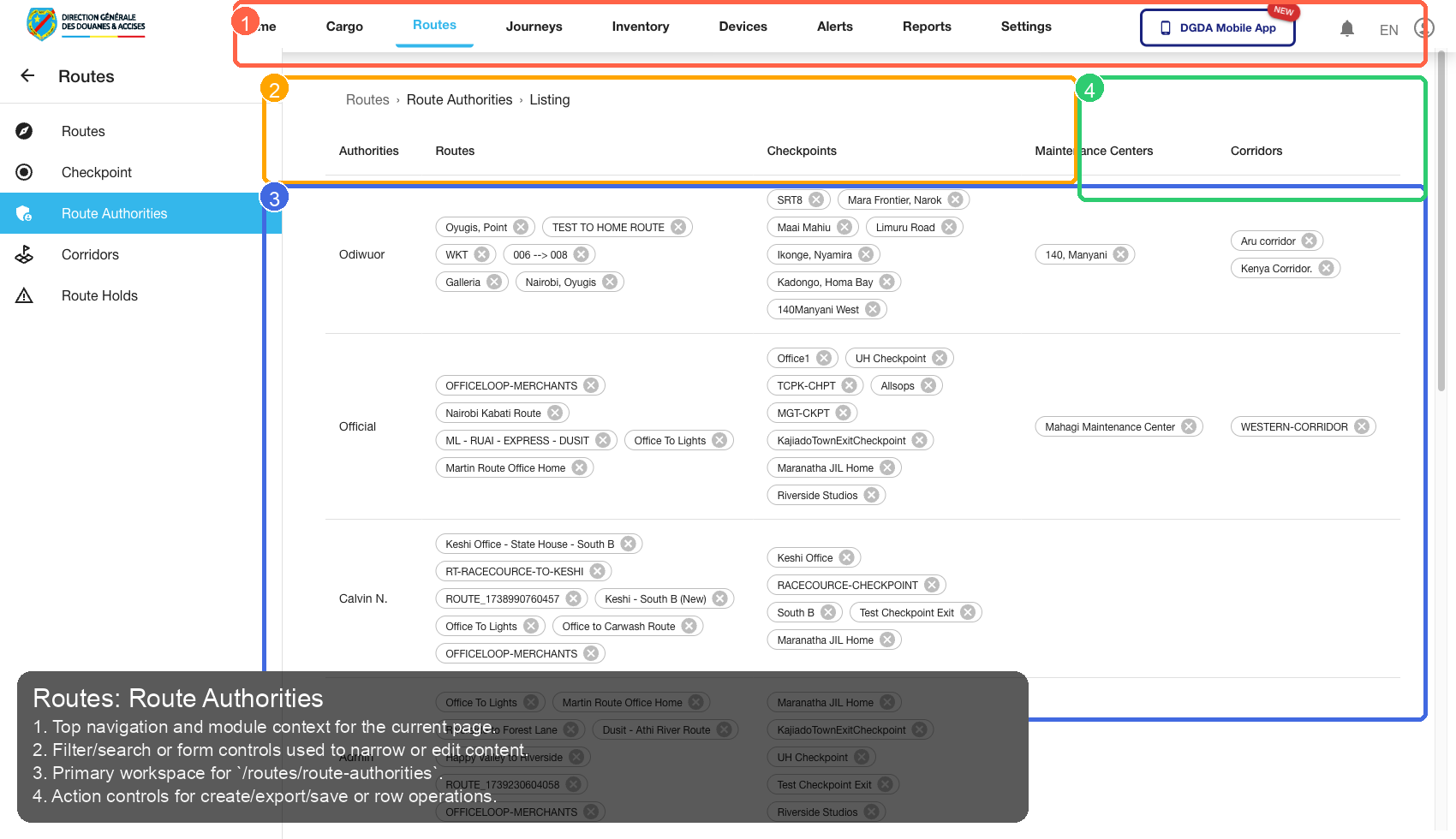

Source Screenshot: 22-routes-authorities.png

Route / Context: /routes/route-authorities

Annotated 22-routes-authorities.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /routes/route-authorities. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

6.4 /routes/route-holds

Source Screenshot: 24-routes-holds.png

Route / Context: /routes/route-holds

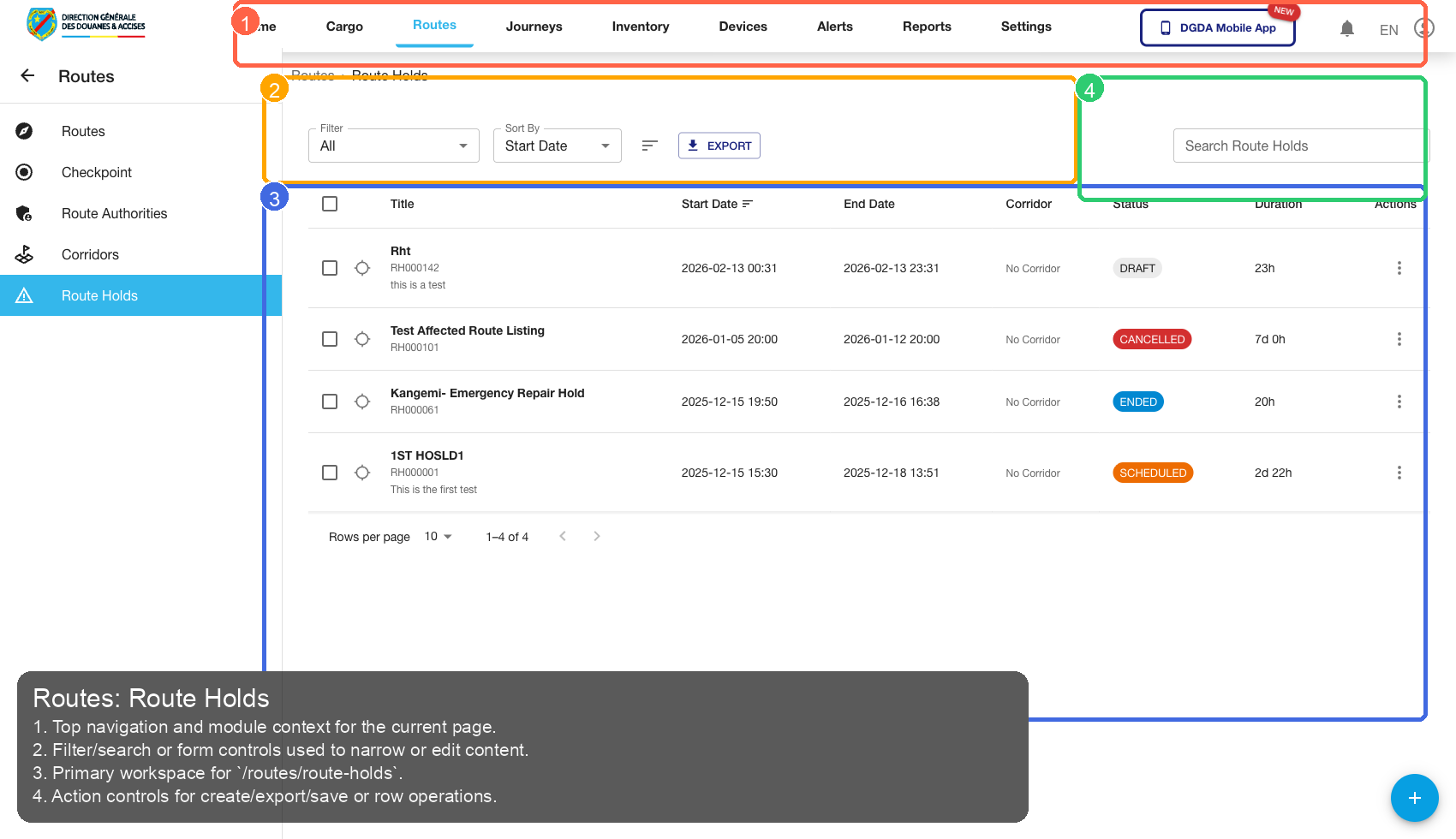

Annotated 24-routes-holds.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /routes/route-holds. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

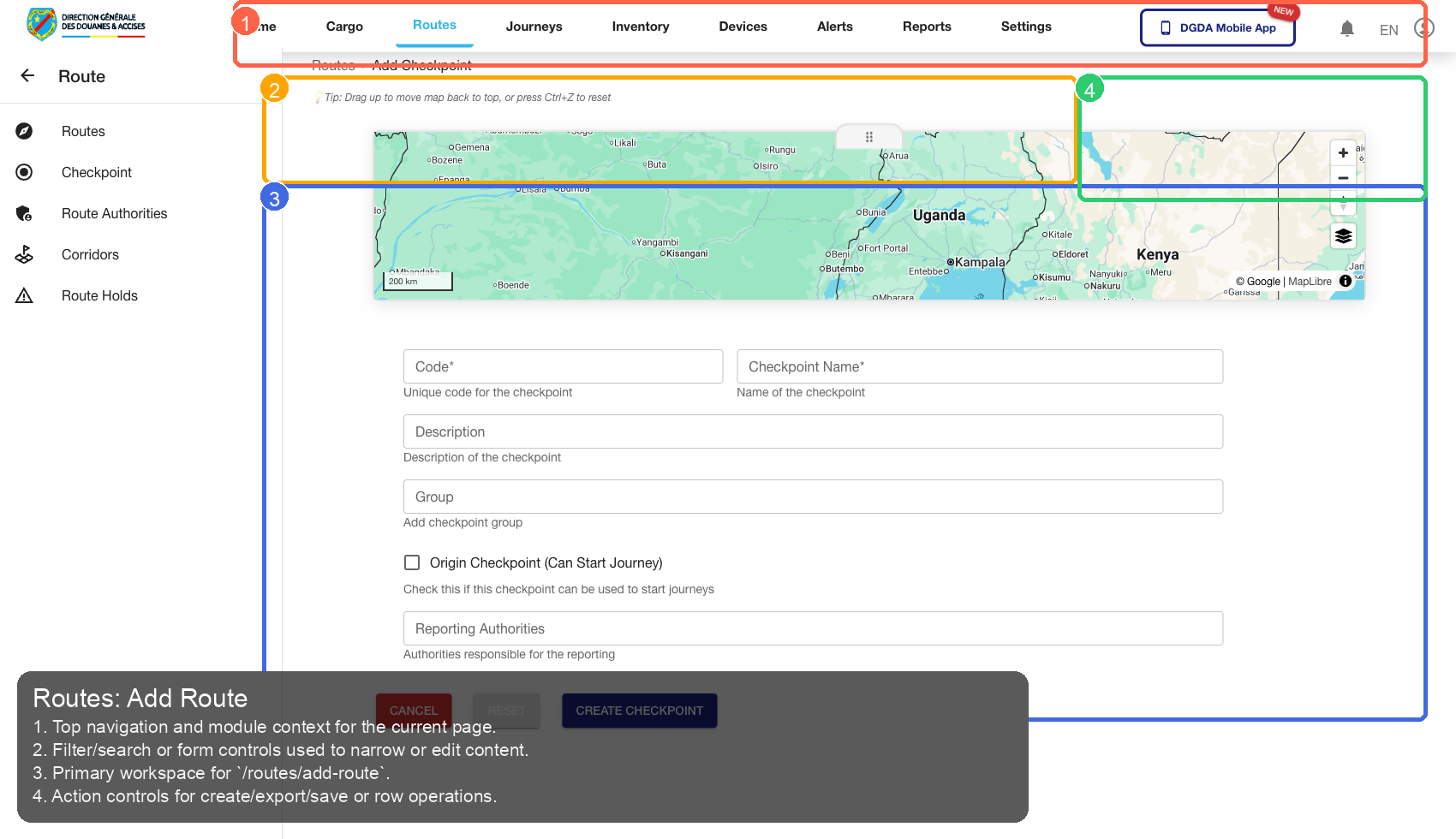

6.5 /routes/add-route

Source Screenshot: 39-routes-add-route.png

Route / Context: /routes/add-route

Annotated 39-routes-add-route.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /routes/add-route. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

6.6 /routes/corridors

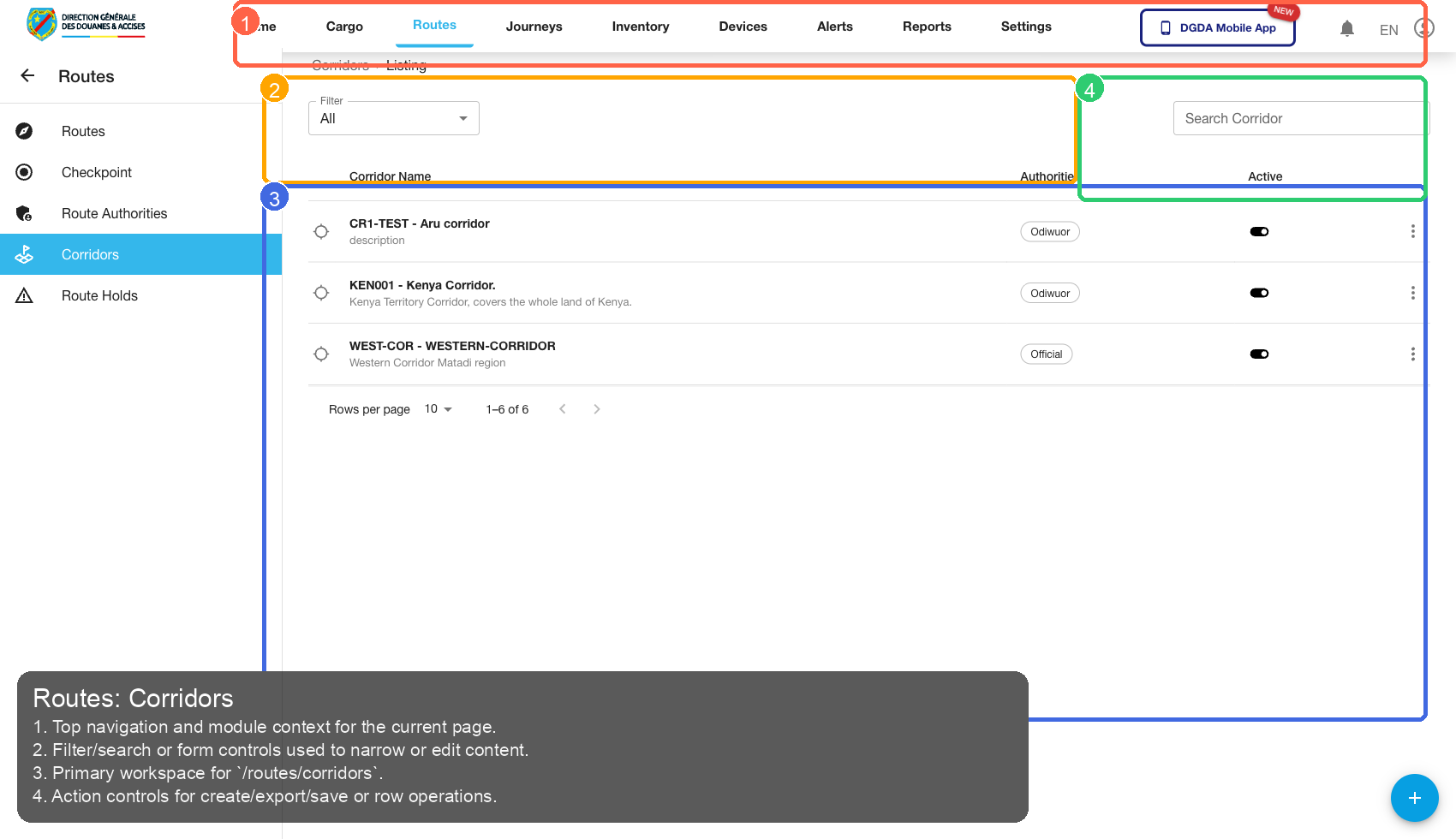

Source Screenshot: 40-routes-corridors.png

Route / Context: /routes/corridors

Annotated 40-routes-corridors.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /routes/corridors. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

7. Inventory

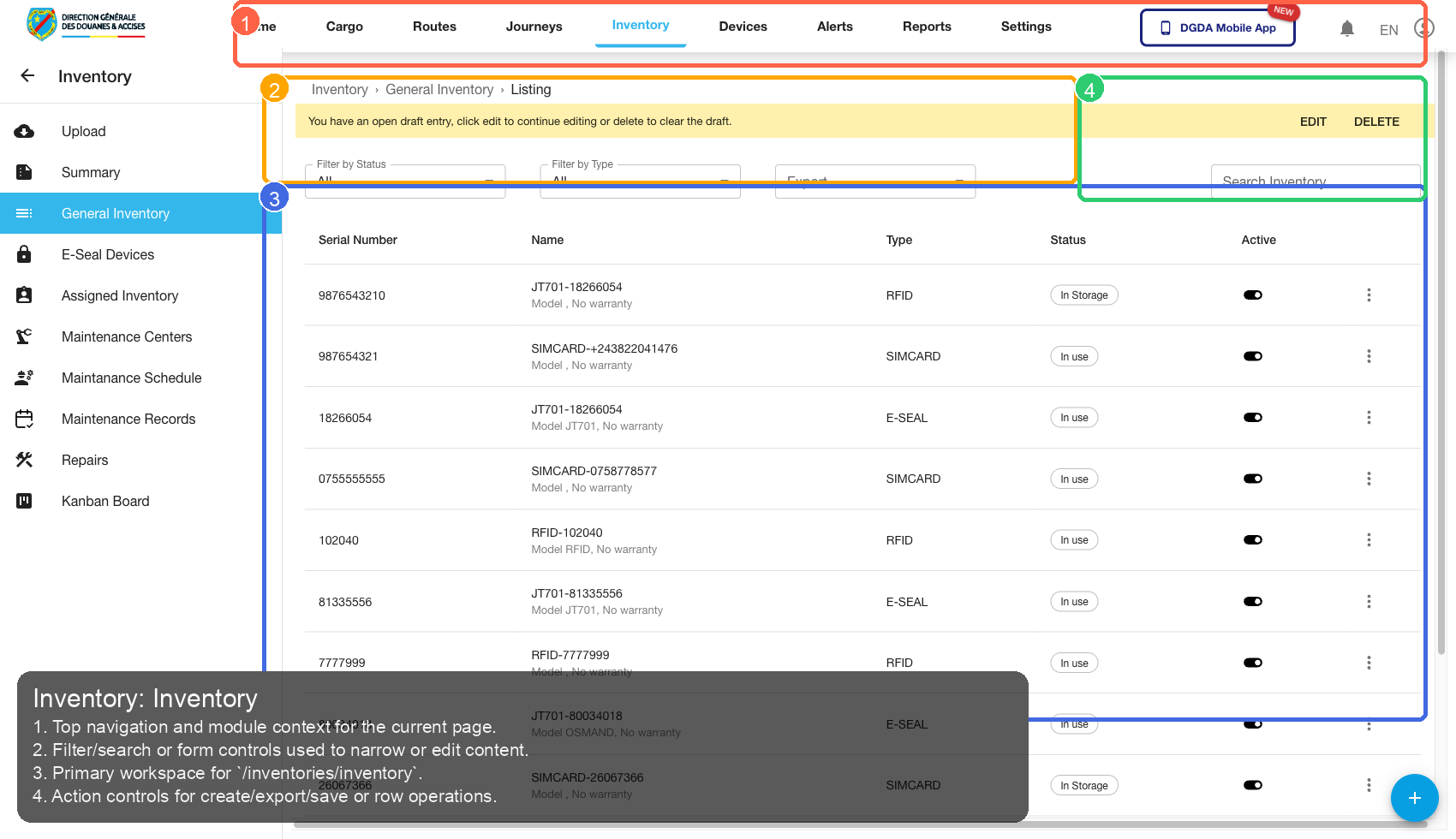

7.1 /inventories/inventory

Source Screenshot: 25-inventory-list.png

Route / Context: /inventories/inventory

Annotated 25-inventory-list.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /inventories/inventory. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

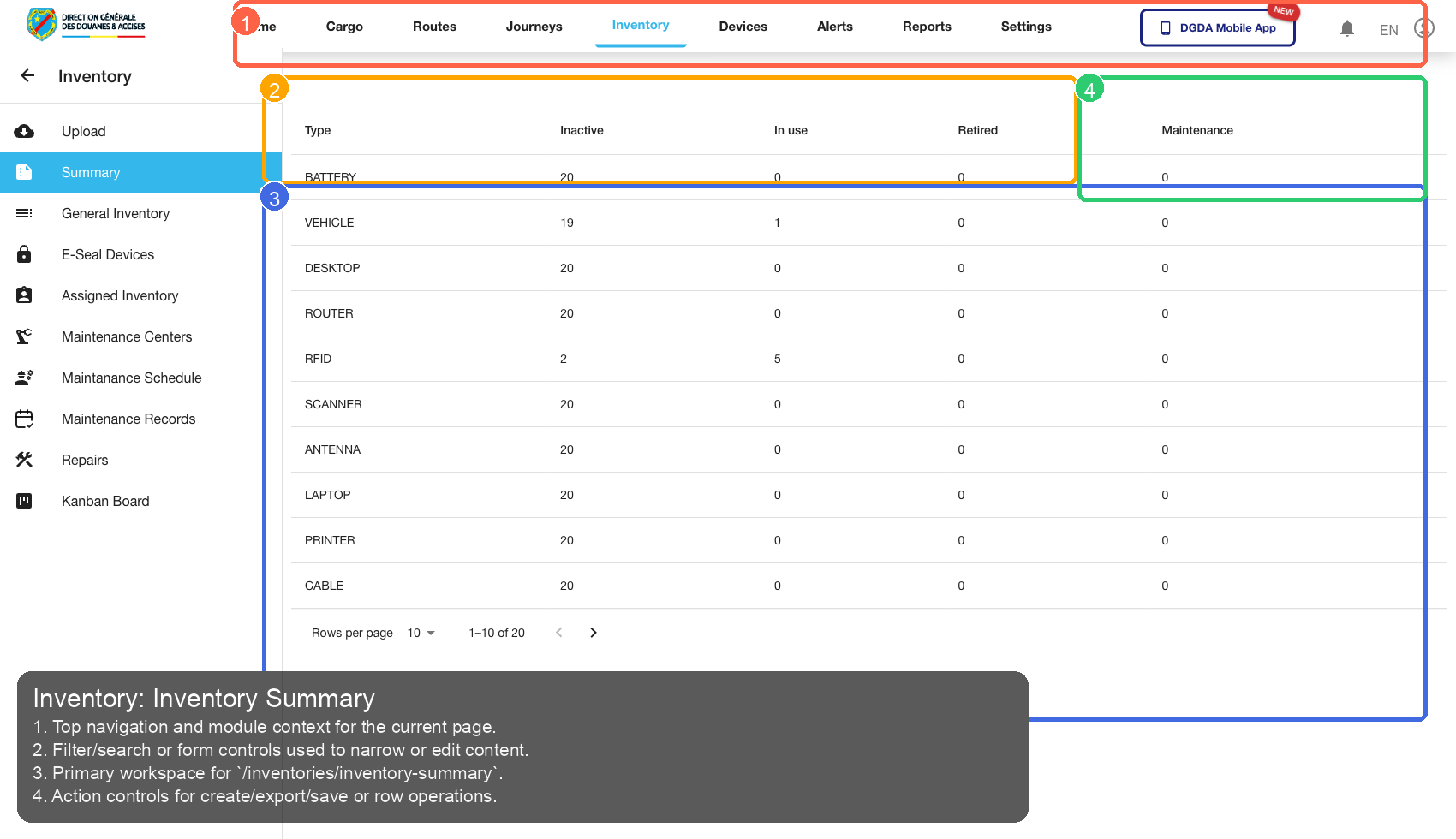

7.2 /inventories/inventory-summary

Source Screenshot: 26-inventory-summary.png

Route / Context: /inventories/inventory-summary

Annotated 26-inventory-summary.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /inventories/inventory-summary. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

7.3 /inventories/assigned-inventory

Source Screenshot: 27-inventory-assigned.png

Route / Context: /inventories/assigned-inventory

Annotated 27-inventory-assigned.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /inventories/assigned-inventory. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

7.4 /inventories/add-inventory

Source Screenshot: 41-inventory-add-inventory.png

Route / Context: /inventories/add-inventory

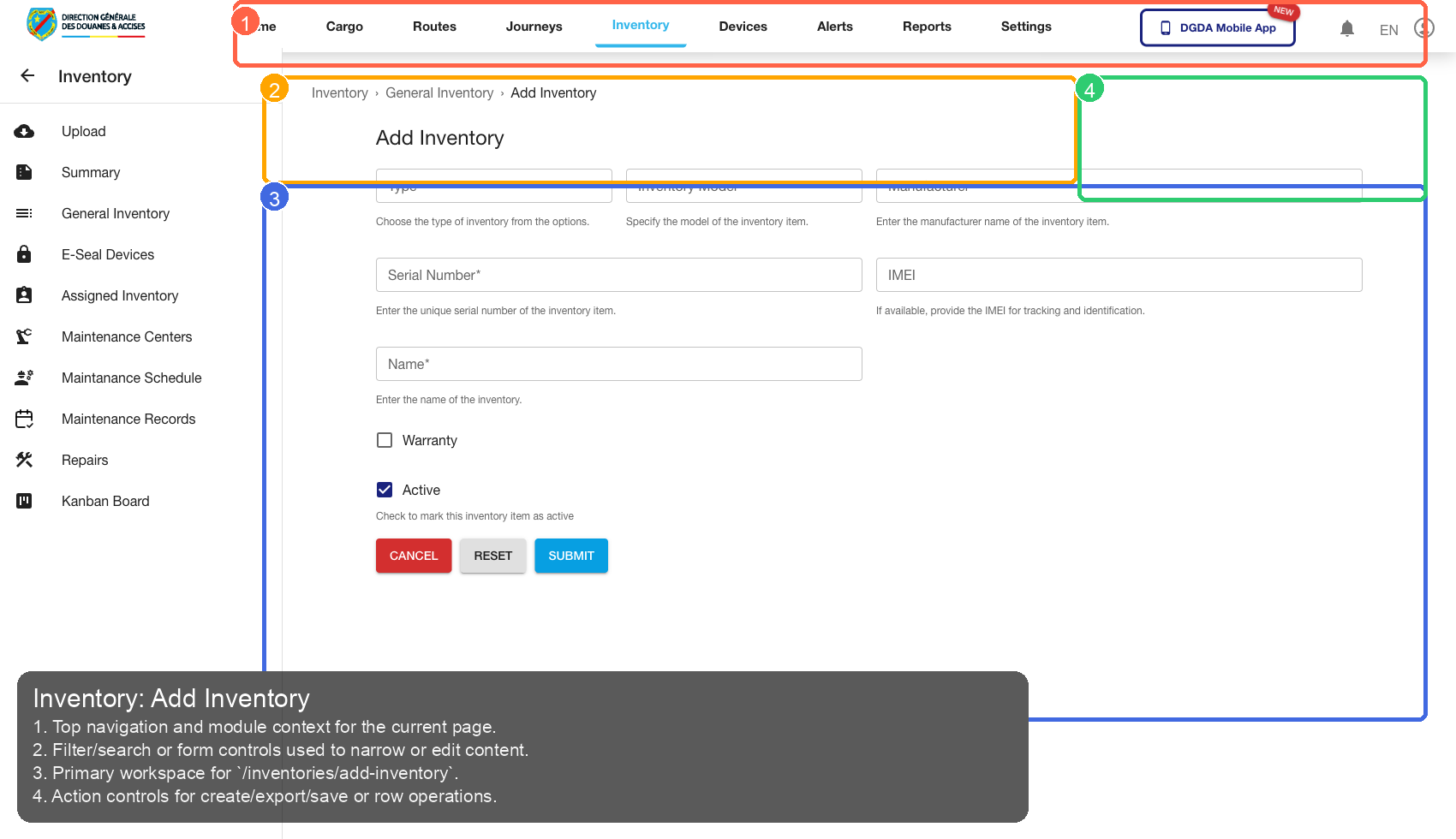

Annotated 41-inventory-add-inventory.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /inventories/add-inventory. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

8. Alerts

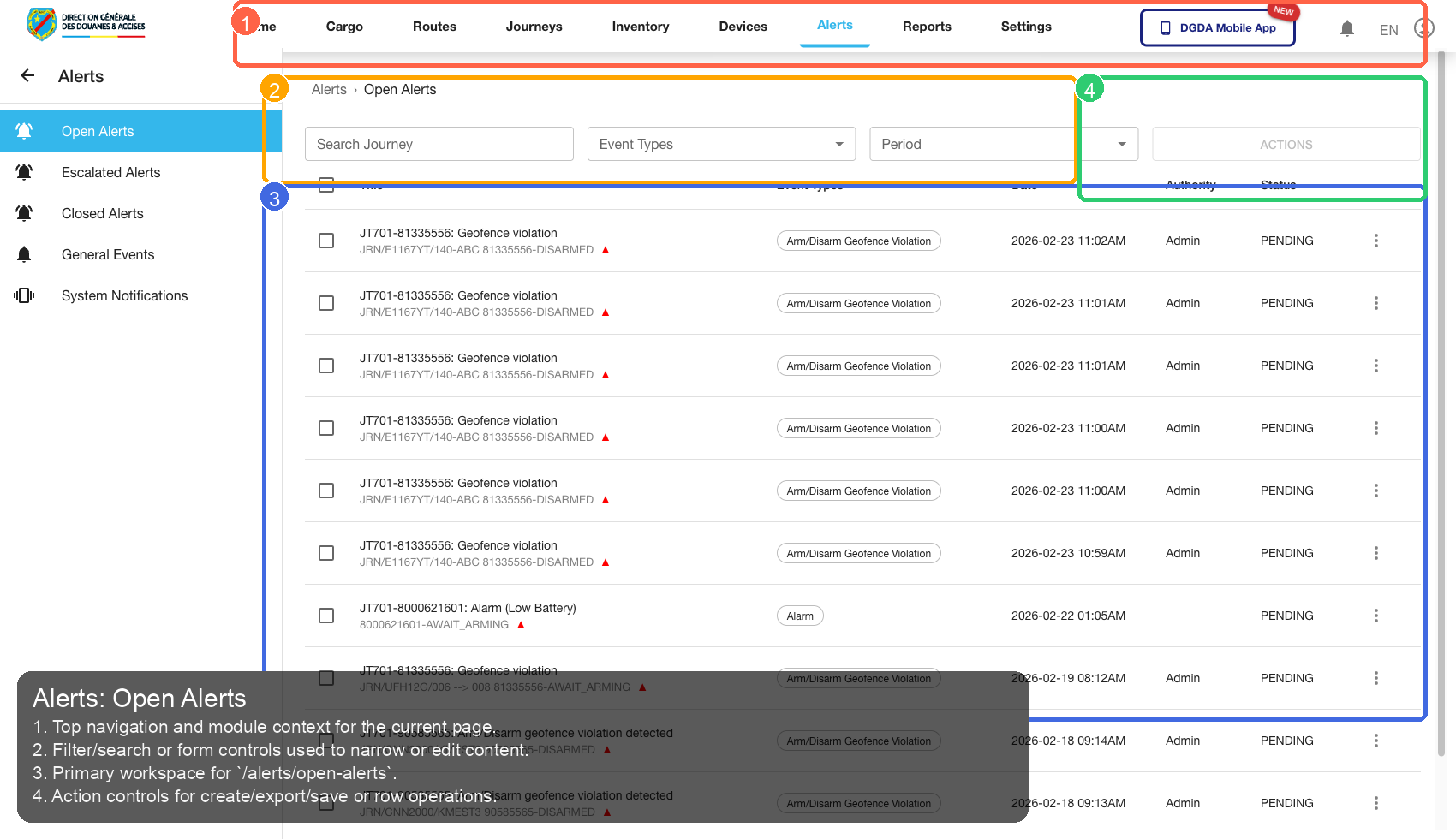

8.1 /alerts/open-alerts

Source Screenshot: 28-alerts-open.png

Route / Context: /alerts/open-alerts

Annotated 28-alerts-open.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /alerts/open-alerts. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

8.2 /alerts/escalated-alerts

Source Screenshot: 29-alerts-escalated.png

Route / Context: /alerts/escalated-alerts

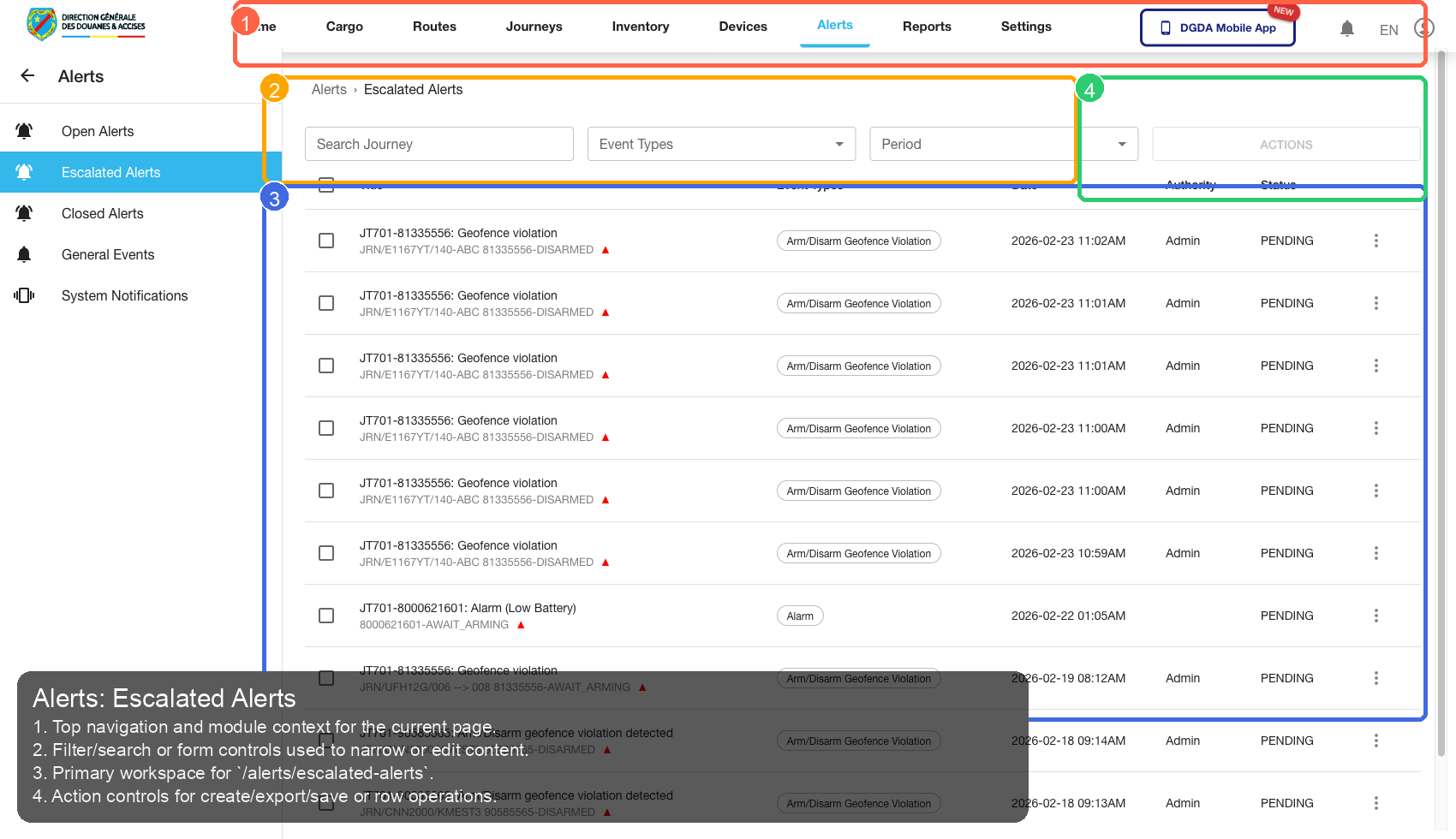

Annotated 29-alerts-escalated.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /alerts/escalated-alerts. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

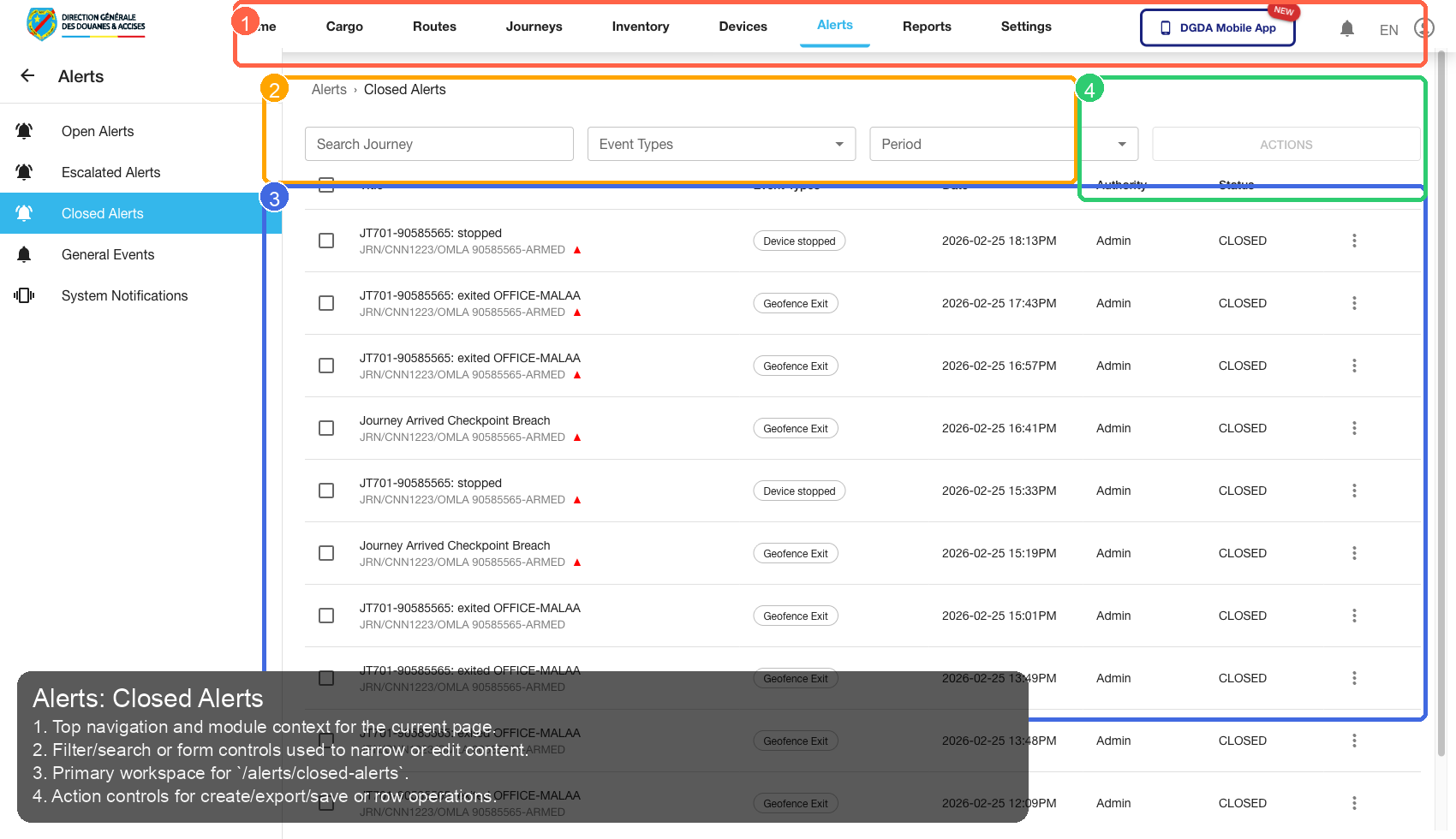

8.3 /alerts/closed-alerts

Source Screenshot: 44-alerts-closed.png

Route / Context: /alerts/closed-alerts

Annotated 44-alerts-closed.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /alerts/closed-alerts. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

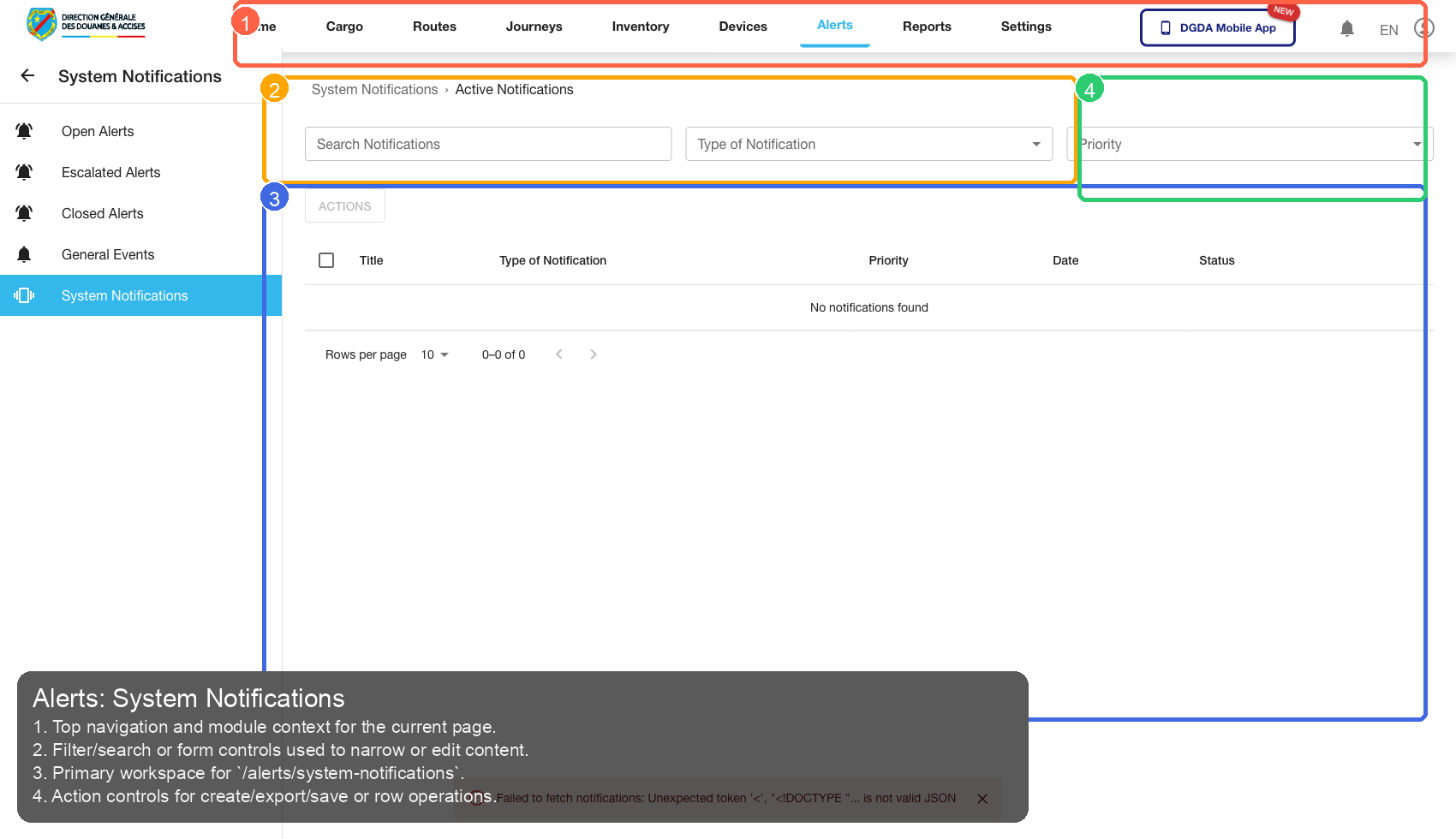

8.4 /alerts/system-notifications

Source Screenshot: 30-alerts-system-notifications.png

Route / Context: /alerts/system-notifications

Annotated 30-alerts-system-notifications.png

Callout Focus Training Instruction Validation
1 Navigation Context Top navigation and module context for the current page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter/search or form controls used to narrow or edit content. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /alerts/system-notifications. Primary content renders without blank/error state.
4 Actions / Operations Action controls for create/export/save or row operations. Action executes expected operation without runtime error.

9. Reports

9.1 /reports (long wait)

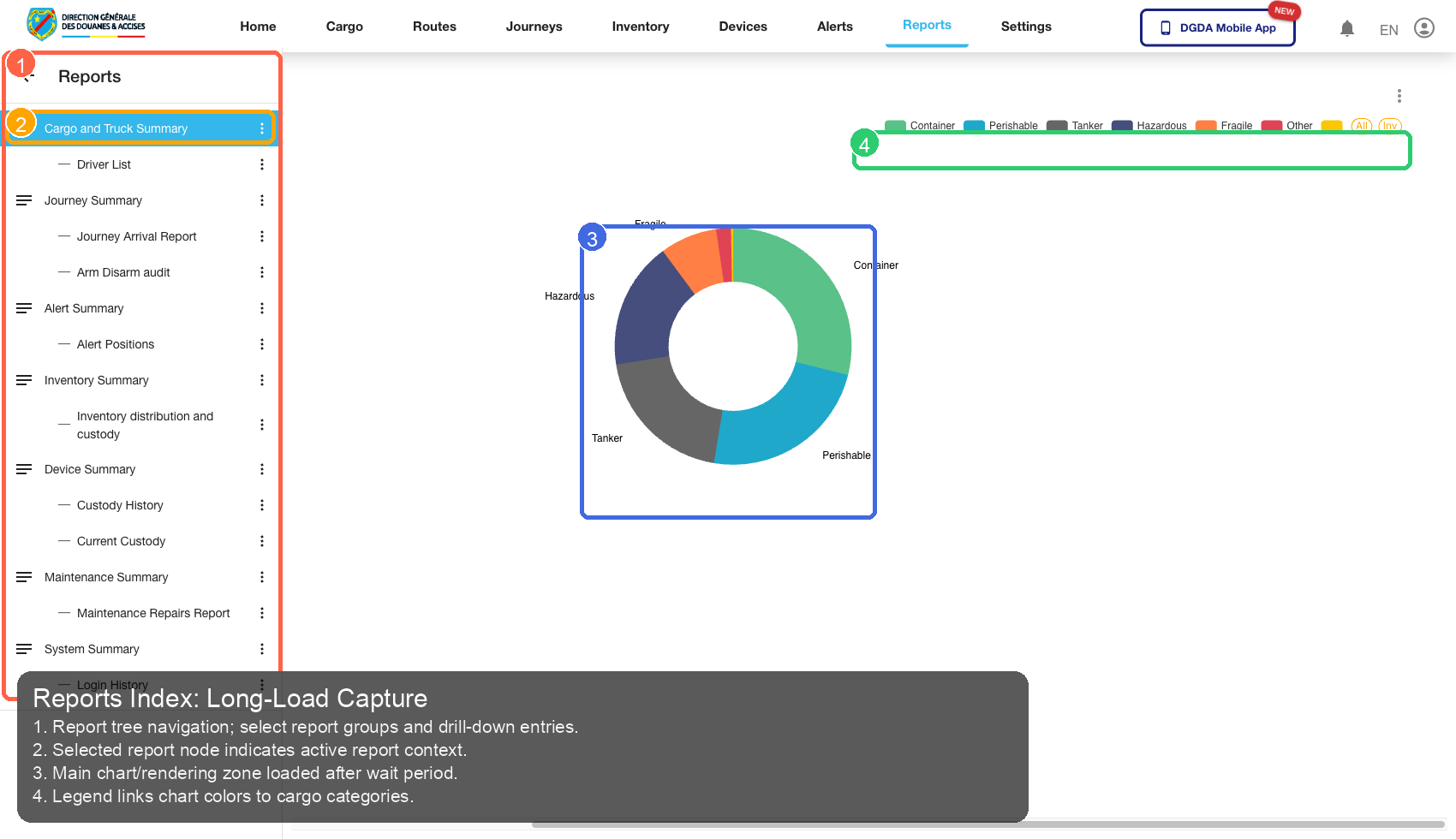

Source Screenshot: 71-reports-index-longwait.png

Route / Context: /reports (long wait)

Annotated 71-reports-index-longwait.png

Callout Focus Training Instruction Validation
1 Navigation Context Report tree navigation; select report groups and drill-down entries. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Selected report node indicates active report context. Changing this control updates page state as expected.
3 Primary Workspace Main chart/rendering zone loaded after wait period. Primary content renders without blank/error state.
4 Actions / Operations Legend links chart colors to cargo categories. Action executes expected operation without runtime error.

9.2 /reports/superset/18 (long wait)

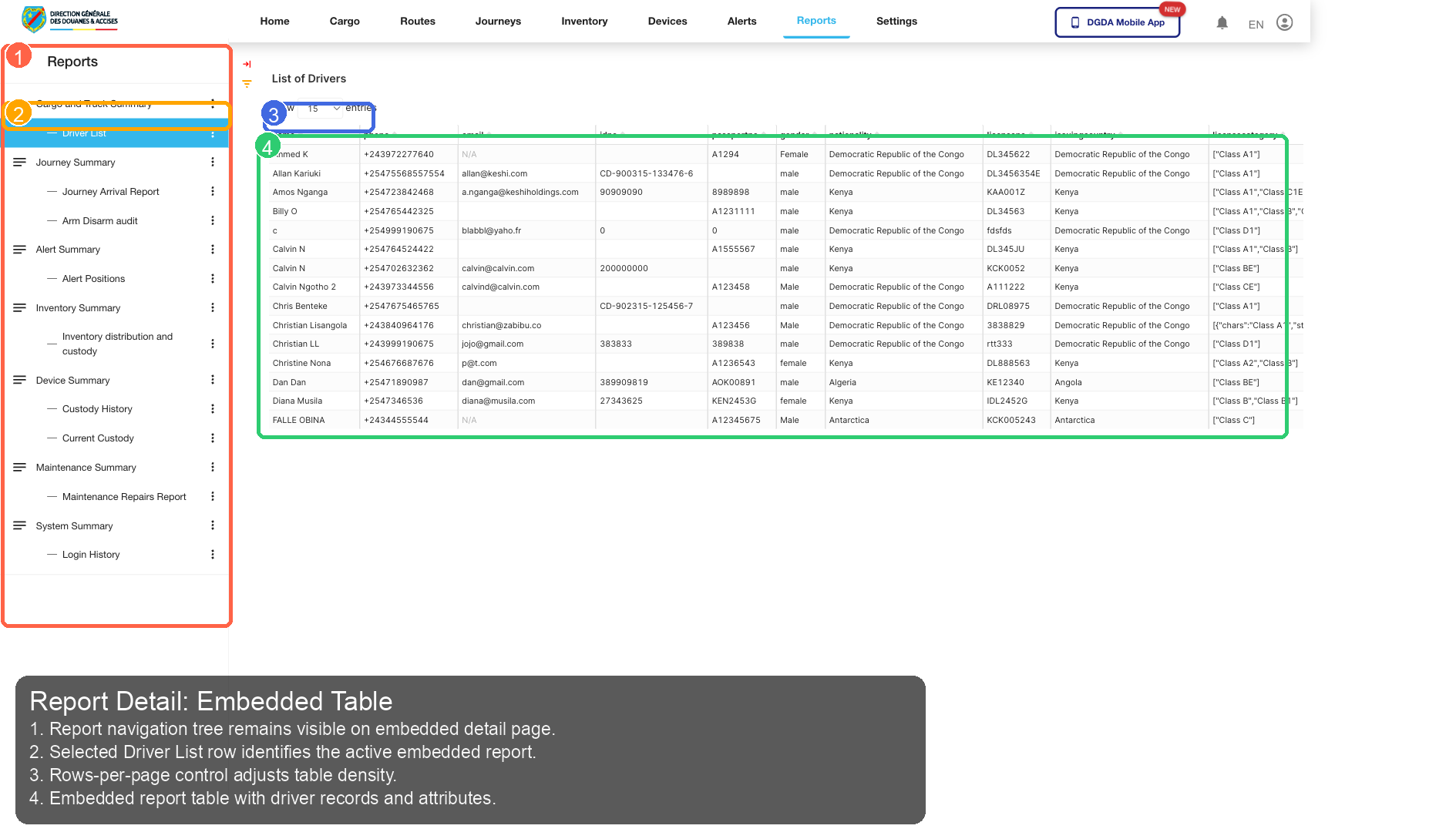

Source Screenshot: 72-report-detail-longwait.png

Route / Context: /reports/superset/18 (long wait)

Annotated 72-report-detail-longwait.png

Callout Focus Training Instruction Validation
1 Navigation Context Report navigation tree remains visible on embedded detail page. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Selected Driver List row identifies the active embedded report. Changing this control updates page state as expected.
3 Primary Workspace Rows-per-page control adjusts table density. Primary content renders without blank/error state.
4 Actions / Operations Embedded report table with driver records and attributes. Action executes expected operation without runtime error.

10. Settings

10.1 /settings/users

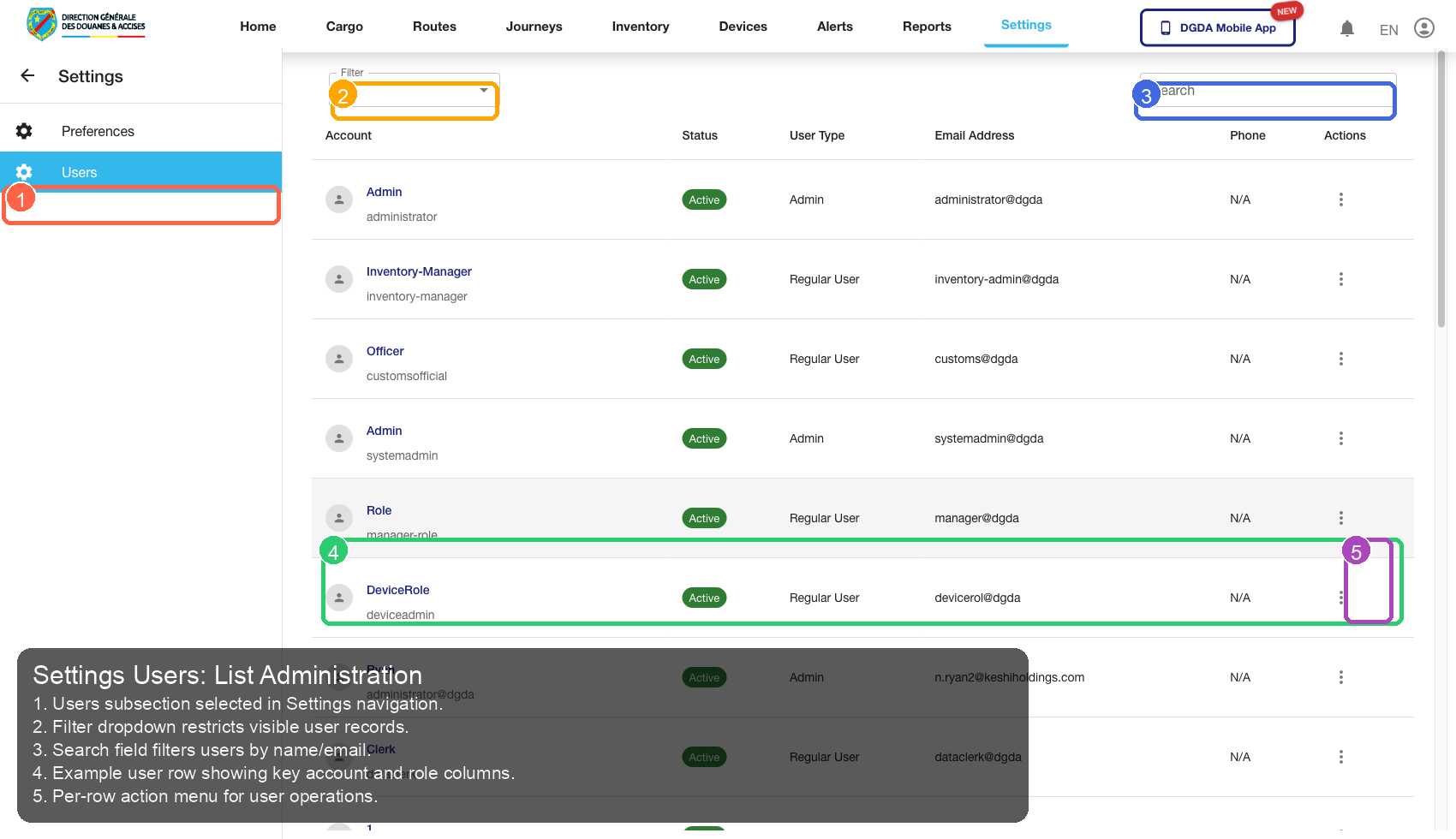

Source Screenshot: 62-settings-users.png

Route / Context: /settings/users

Annotated 62-settings-users.png

Callout Focus Training Instruction Validation
1 Navigation Context Users subsection selected in Settings navigation. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Filter dropdown restricts visible user records. Changing this control updates page state as expected.
3 Primary Workspace Search field filters users by name/email. Primary content renders without blank/error state.
4 Actions / Operations Example user row showing key account and role columns. Action executes expected operation without runtime error.
5 Additional Control Per-row action menu for user operations. Control behaves consistently and remains interactive.

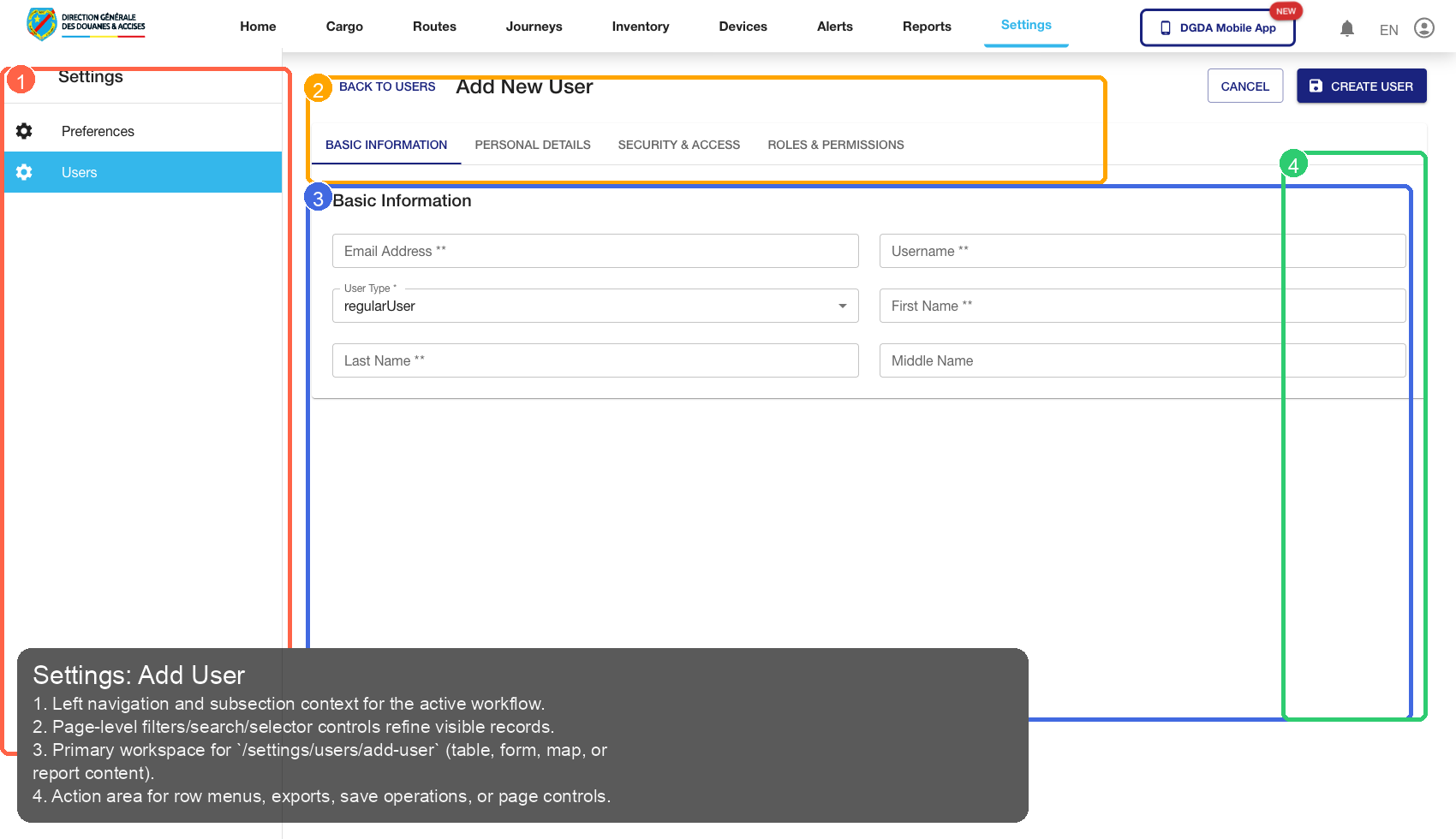

10.2 /settings/users/add-user

Source Screenshot: 63-settings-add-user.png

Route / Context: /settings/users/add-user

Annotated 63-settings-add-user.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /settings/users/add-user (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

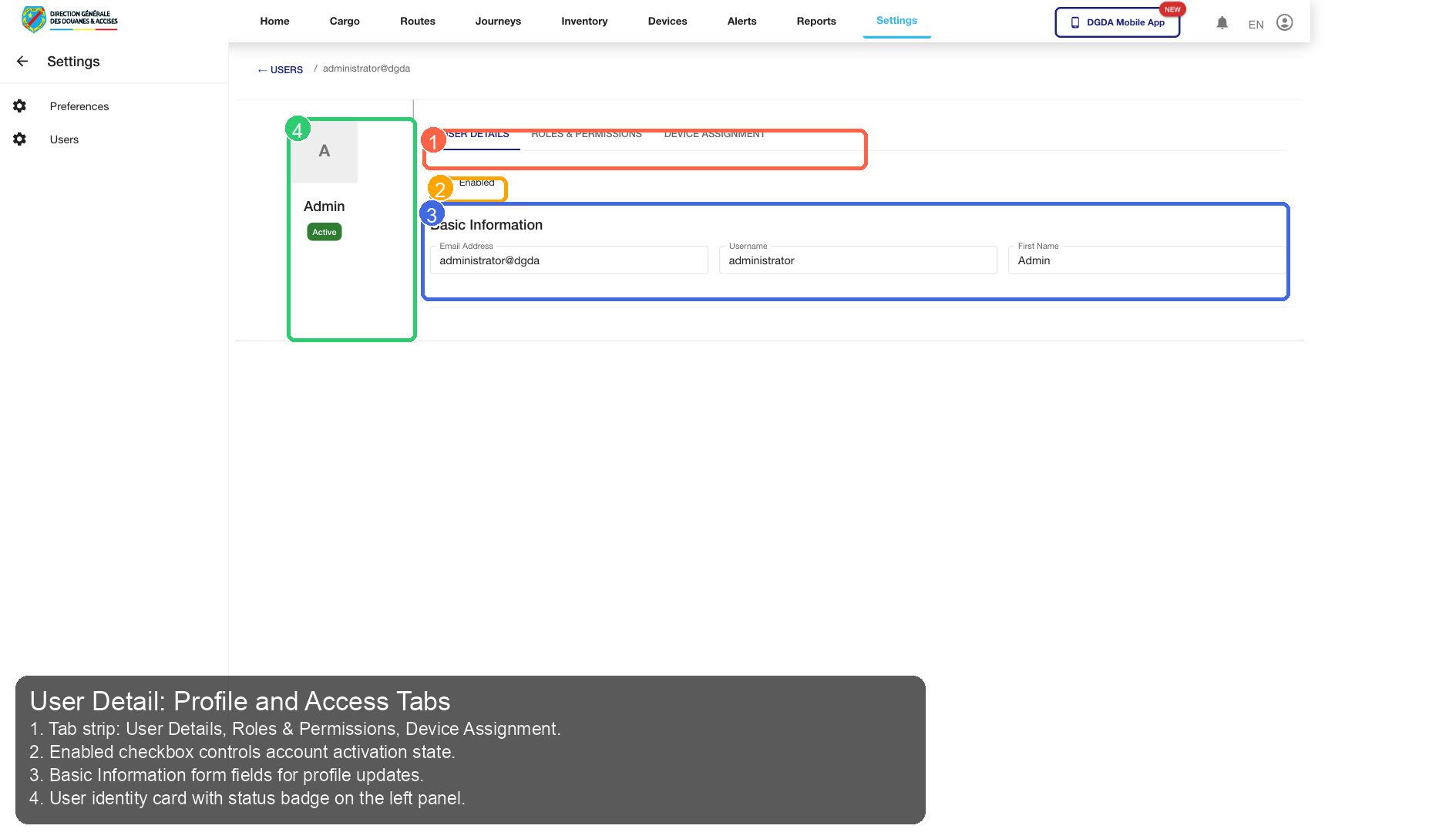

10.3 /settings/userdetail/36116

Source Screenshot: 74-settings-user-clicked.png

Route / Context: /settings/userdetail/36116

Annotated 74-settings-user-clicked.png

Callout Focus Training Instruction Validation
1 Navigation Context Tab strip: User Details, Roles & Permissions, Device Assignment. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Enabled checkbox controls account activation state. Changing this control updates page state as expected.
3 Primary Workspace Basic Information form fields for profile updates. Primary content renders without blank/error state.
4 Actions / Operations User identity card with status badge on the left panel. Action executes expected operation without runtime error.

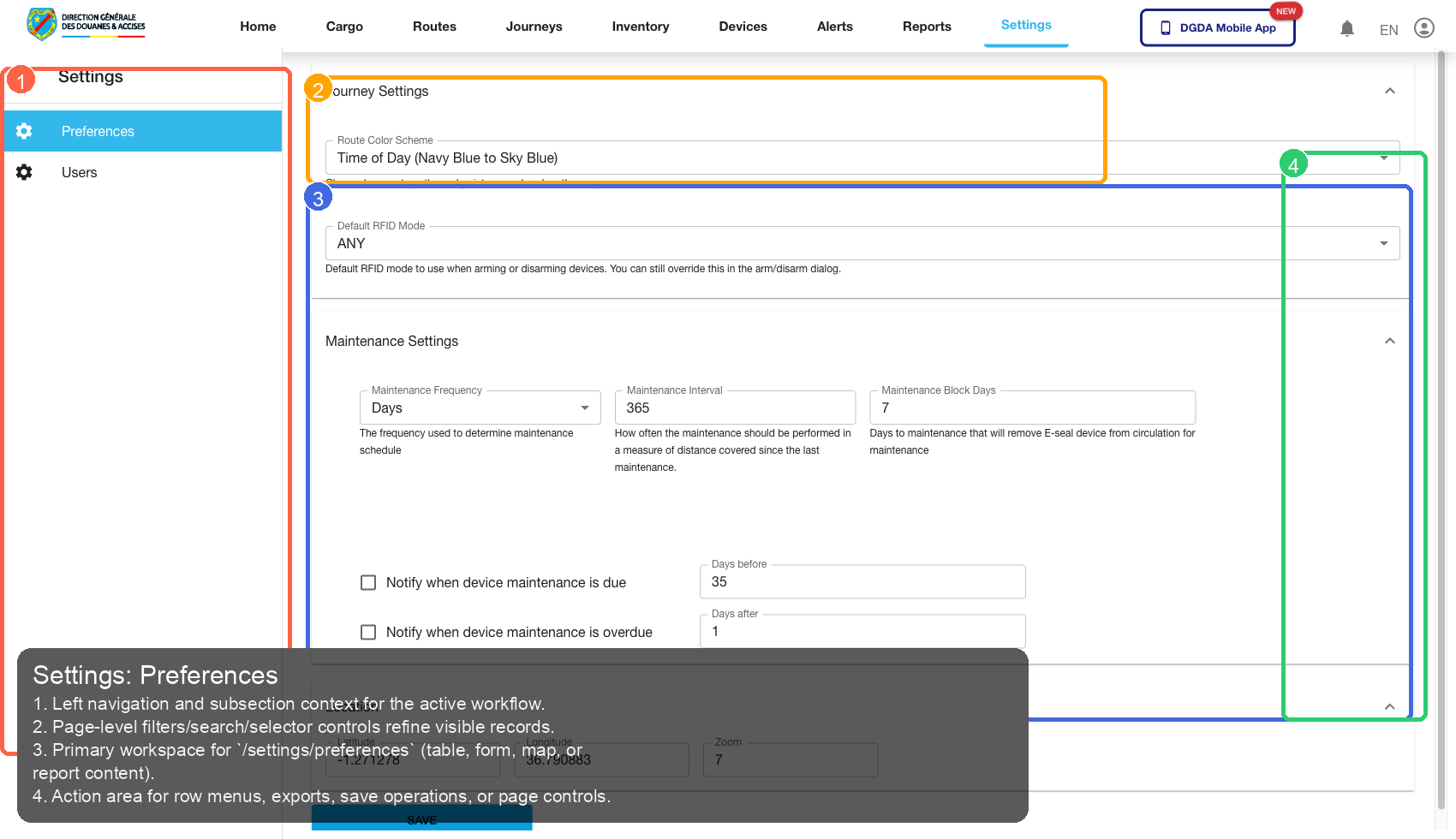

10.4 /settings/preferences

Source Screenshot: 64-settings-preferences.png

Route / Context: /settings/preferences

Annotated 64-settings-preferences.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /settings/preferences (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

10.5 /settings/devices

Source Screenshot: 65-settings-devices-dashboard.png

Route / Context: /settings/devices

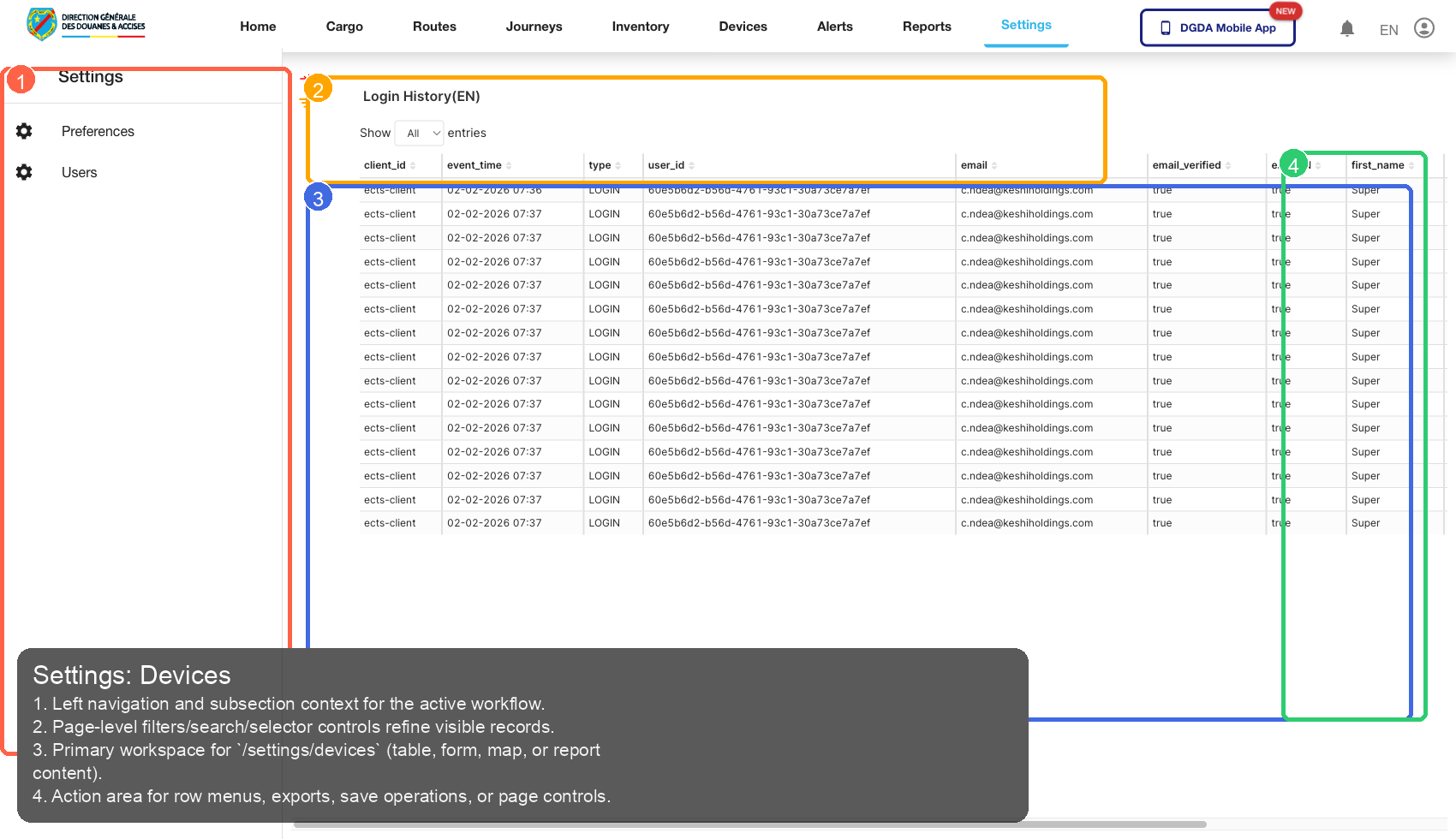

Annotated 65-settings-devices-dashboard.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /settings/devices (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

10.6 /settings/users (before detail click)

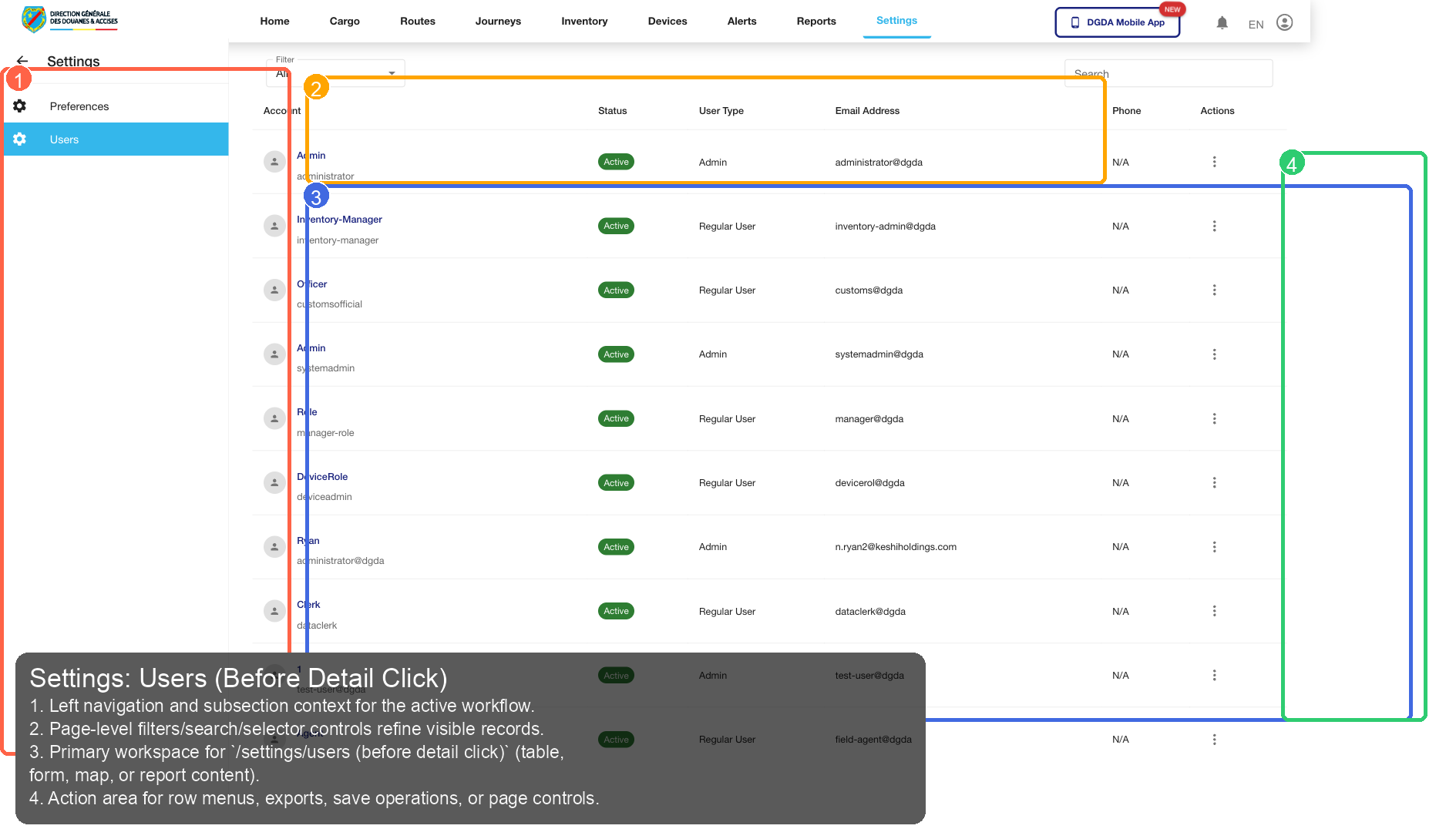

Source Screenshot: 73-settings-users-before-click.png

Route / Context: /settings/users (before detail click)

Annotated 73-settings-users-before-click.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /settings/users (before detail click) (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

11. Devices

11.1 /device/device-summary

Source Screenshot: 46-device-summary.png

Route / Context: /device/device-summary

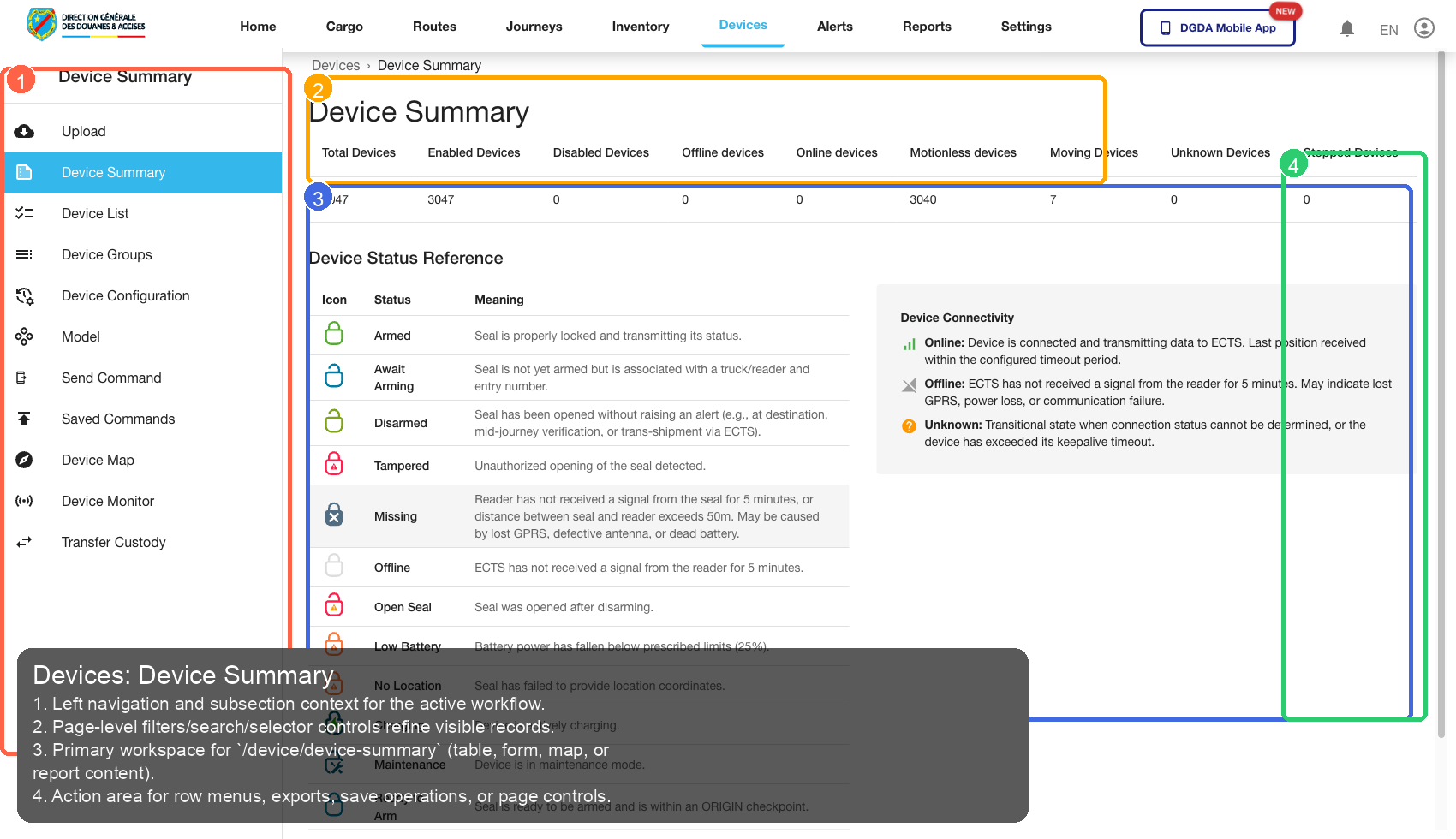

Annotated 46-device-summary.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/device-summary (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

11.2 /device/device-list

Source Screenshot: 47-device-list.png

Route / Context: /device/device-list

Annotated 47-device-list.png

Callout Focus Training Instruction Validation
1 Navigation Context Device List subsection selected in left device navigation. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Device Identifier filter narrows list by ID. Changing this control updates page state as expected.
3 Primary Workspace Armed Status filter narrows list by arming state. Primary content renders without blank/error state.
4 Actions / Operations Example device row with checkpoint, battery, status, and authority. Action executes expected operation without runtime error.
5 Additional Control Floating add button for quick device creation actions. Control behaves consistently and remains interactive.

11.3 /device/device-group

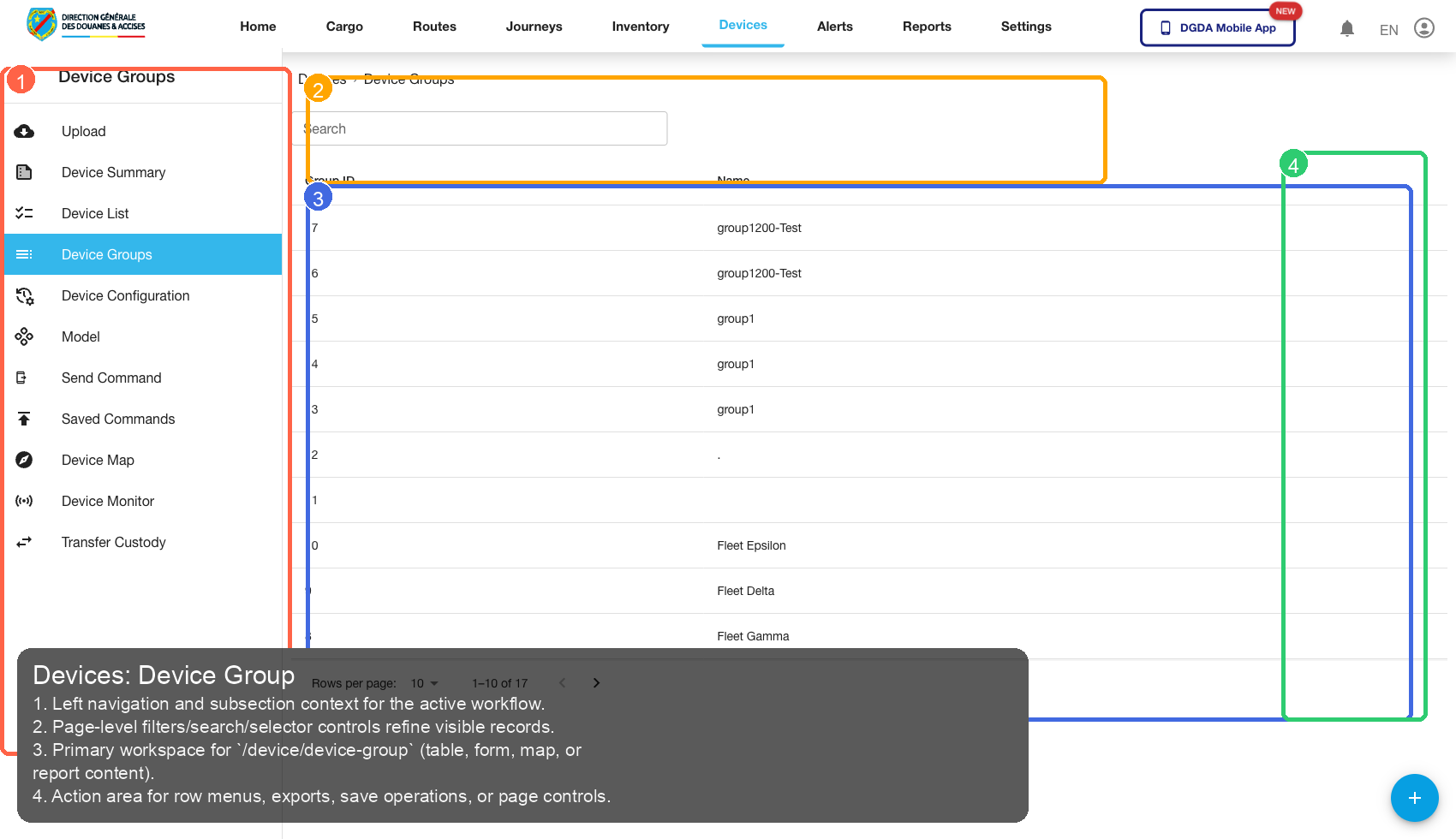

Source Screenshot: 48-device-group.png

Route / Context: /device/device-group

Annotated 48-device-group.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/device-group (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

11.4 /device/add-device

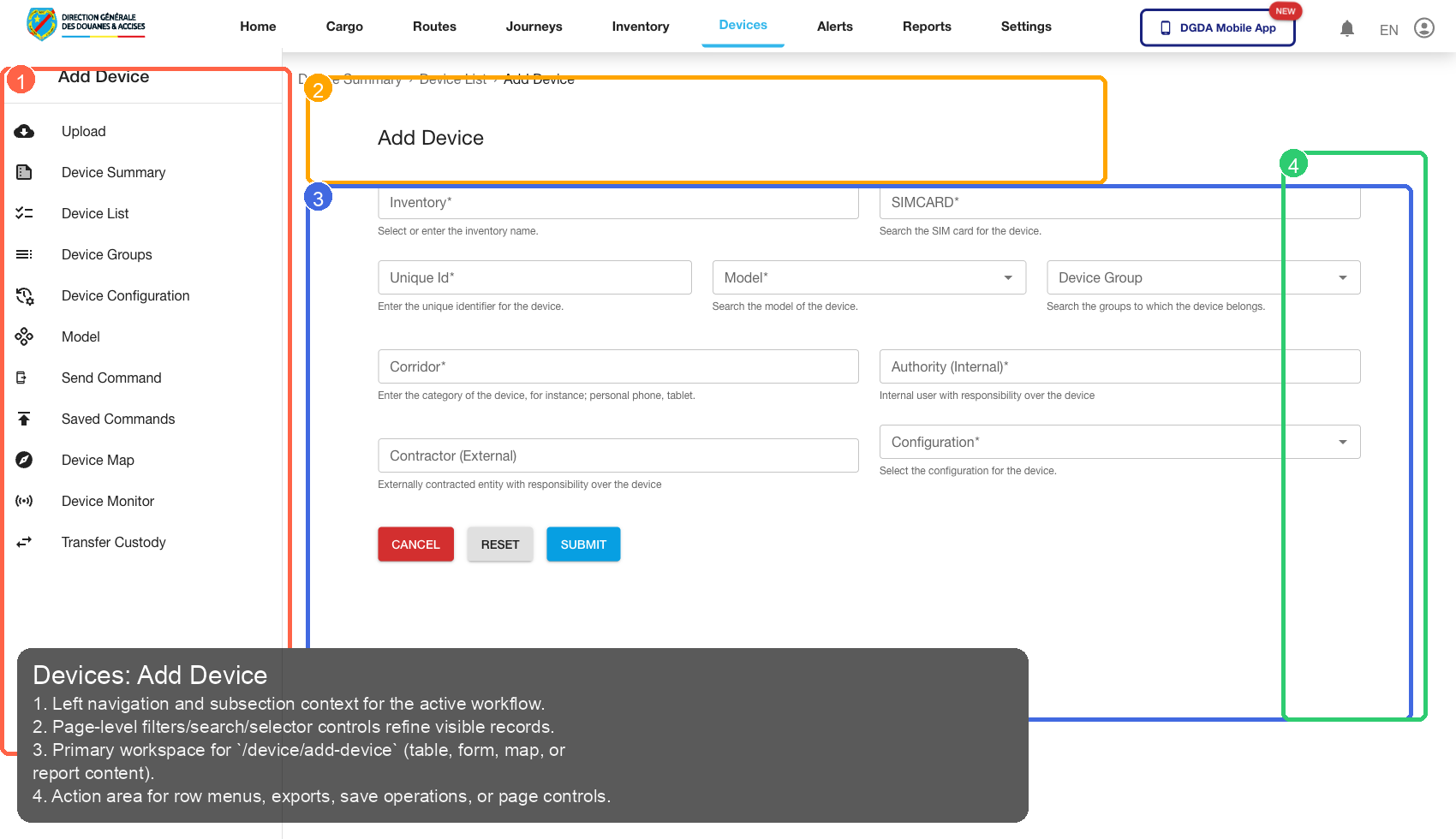

Source Screenshot: 49-device-add-device.png

Route / Context: /device/add-device

Annotated 49-device-add-device.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/add-device (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

11.5 /device/configure-devices

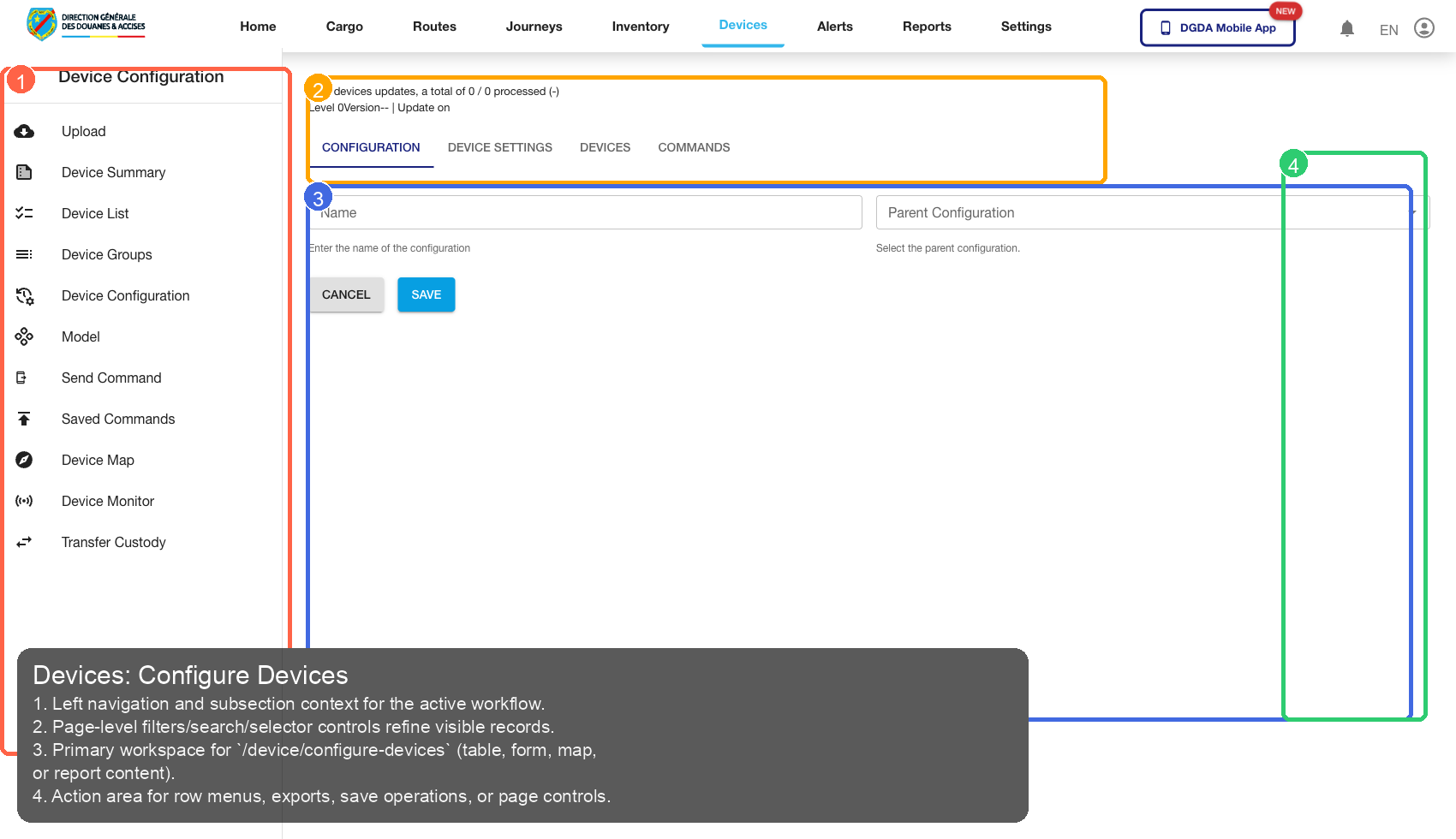

Source Screenshot: 50-device-configure-devices.png

Route / Context: /device/configure-devices

Annotated 50-device-configure-devices.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/configure-devices (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

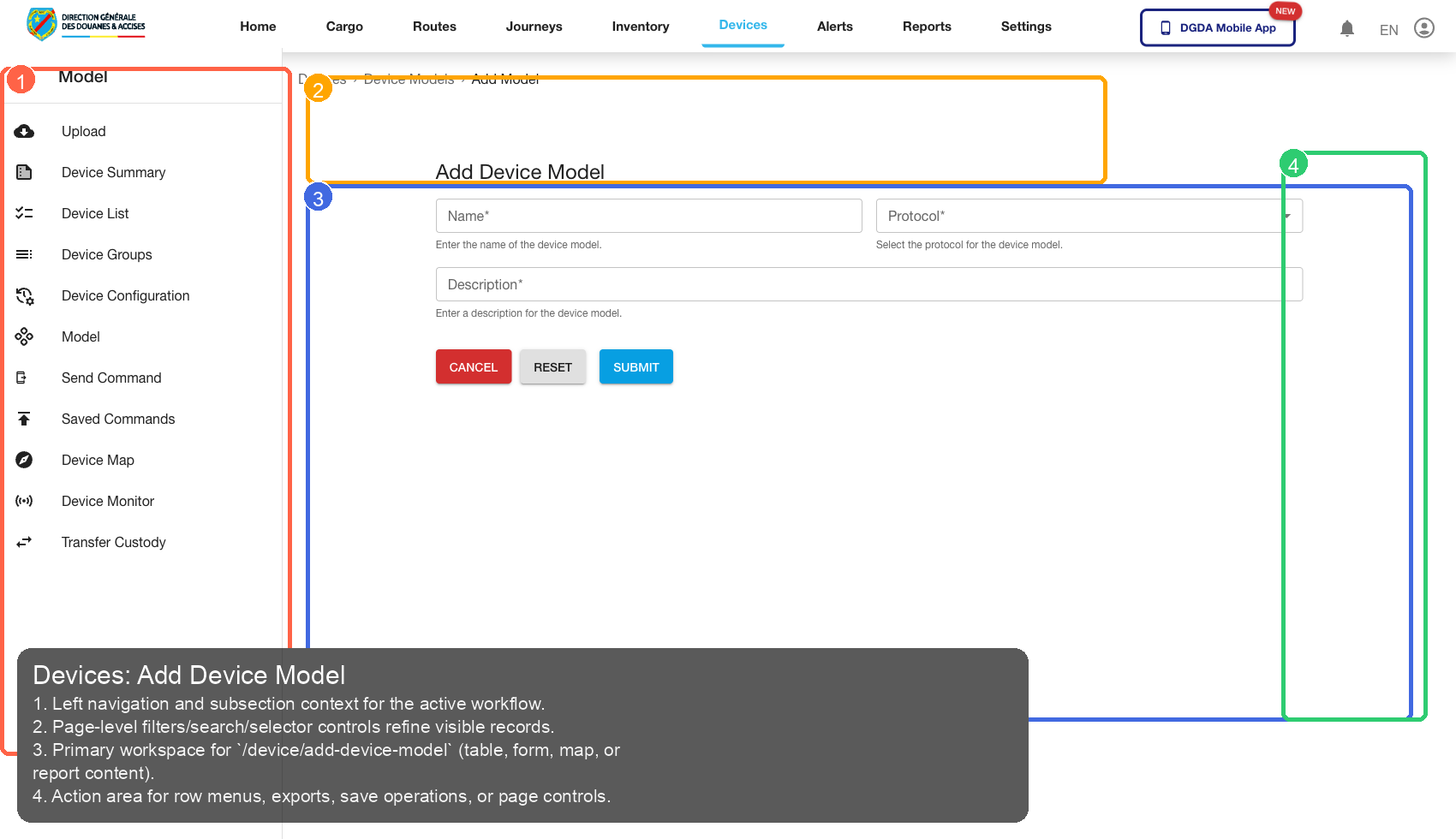

11.6 /device/add-device-model

Source Screenshot: 51-device-add-device-model.png

Route / Context: /device/add-device-model

Annotated 51-device-add-device-model.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/add-device-model (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

11.7 /device/device-models

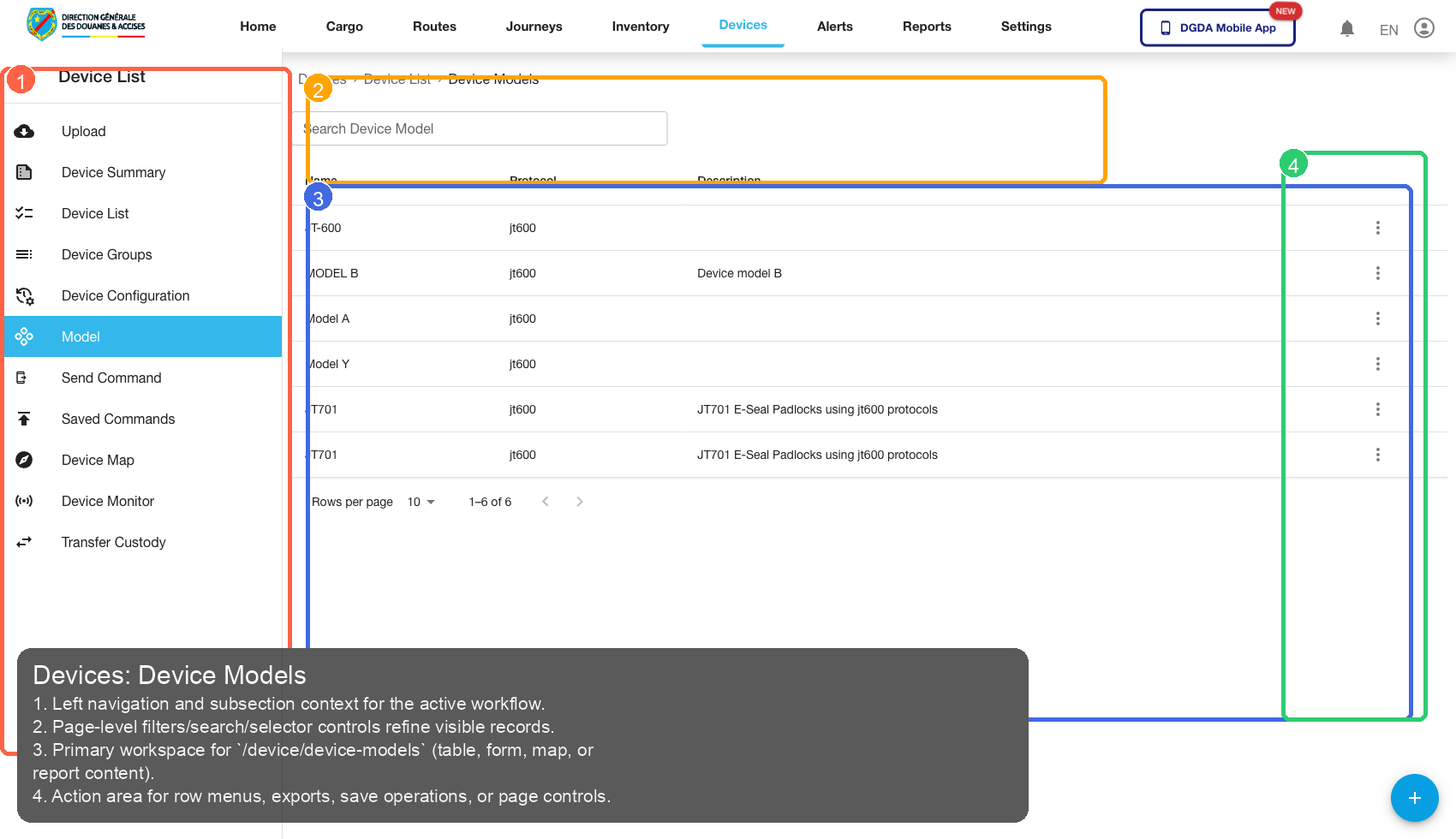

Source Screenshot: 52-device-models.png

Route / Context: /device/device-models

Annotated 52-device-models.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/device-models (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

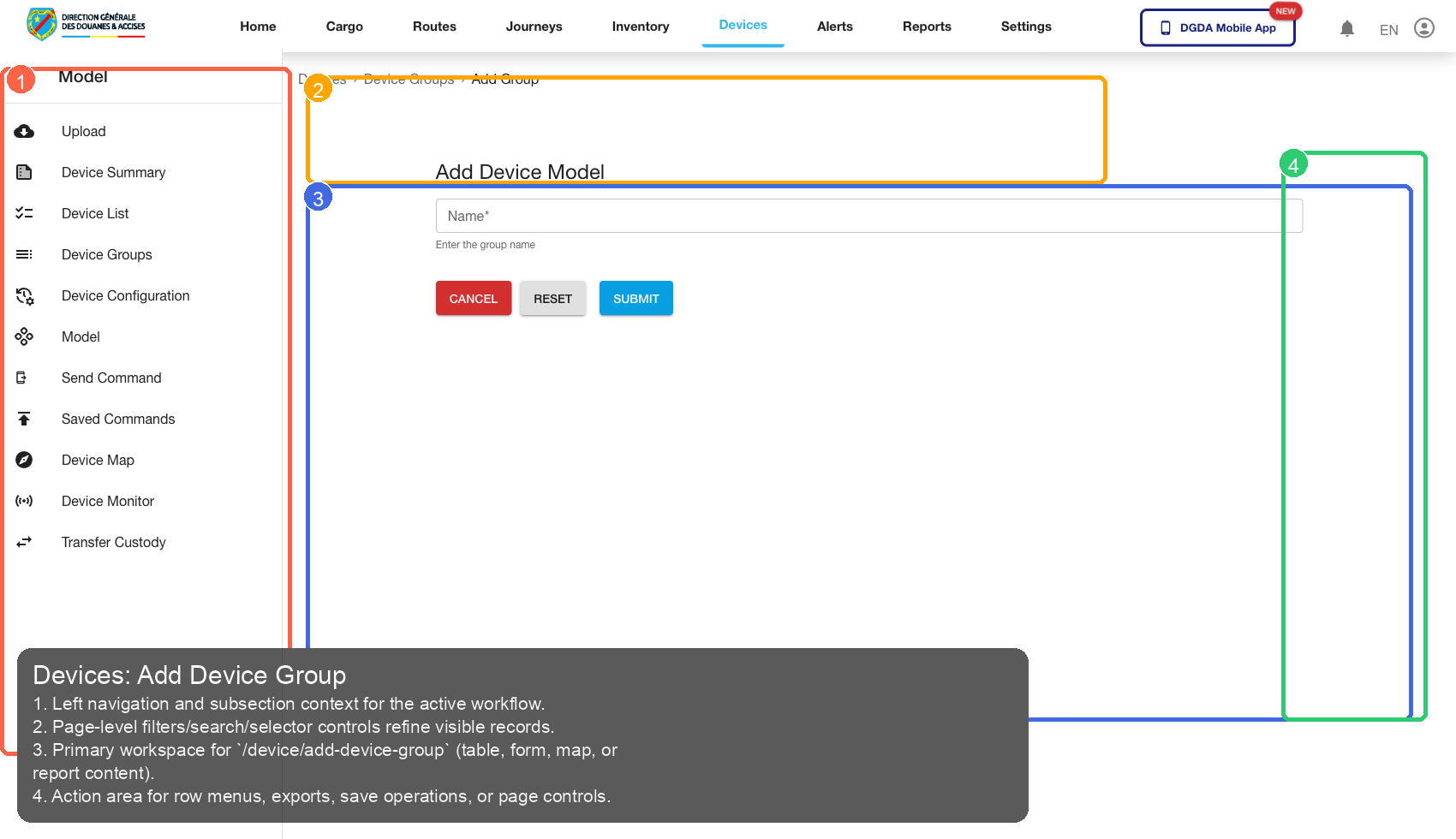

11.8 /device/add-device-group

Source Screenshot: 53-device-add-device-group.png

Route / Context: /device/add-device-group

Annotated 53-device-add-device-group.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/add-device-group (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

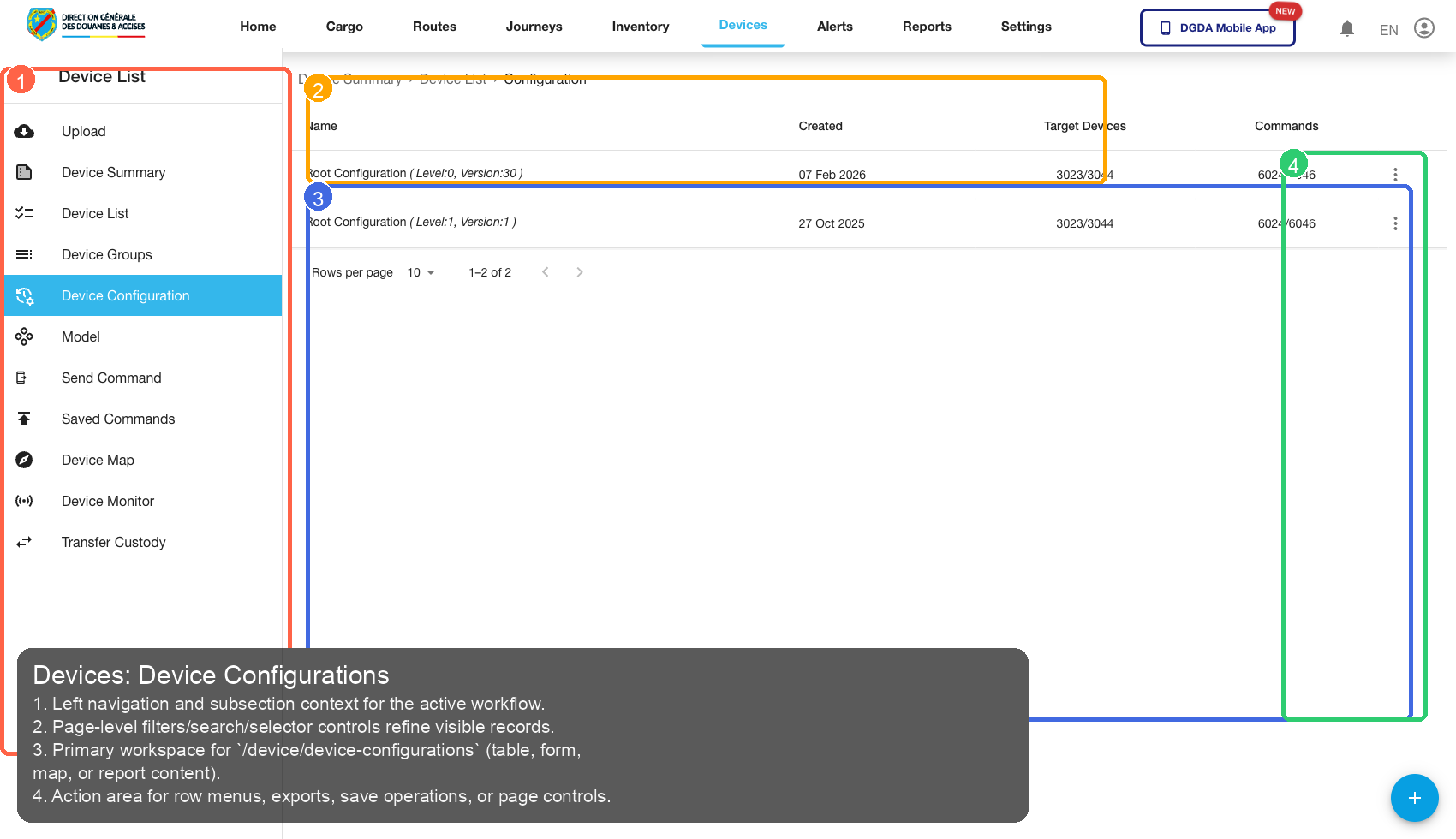

11.9 /device/device-configurations

Source Screenshot: 54-device-configurations.png

Route / Context: /device/device-configurations

Annotated 54-device-configurations.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/device-configurations (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

11.10 /device/import-devices

Source Screenshot: 55-device-import-devices.png

Route / Context: /device/import-devices

Annotated 55-device-import-devices.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/import-devices (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

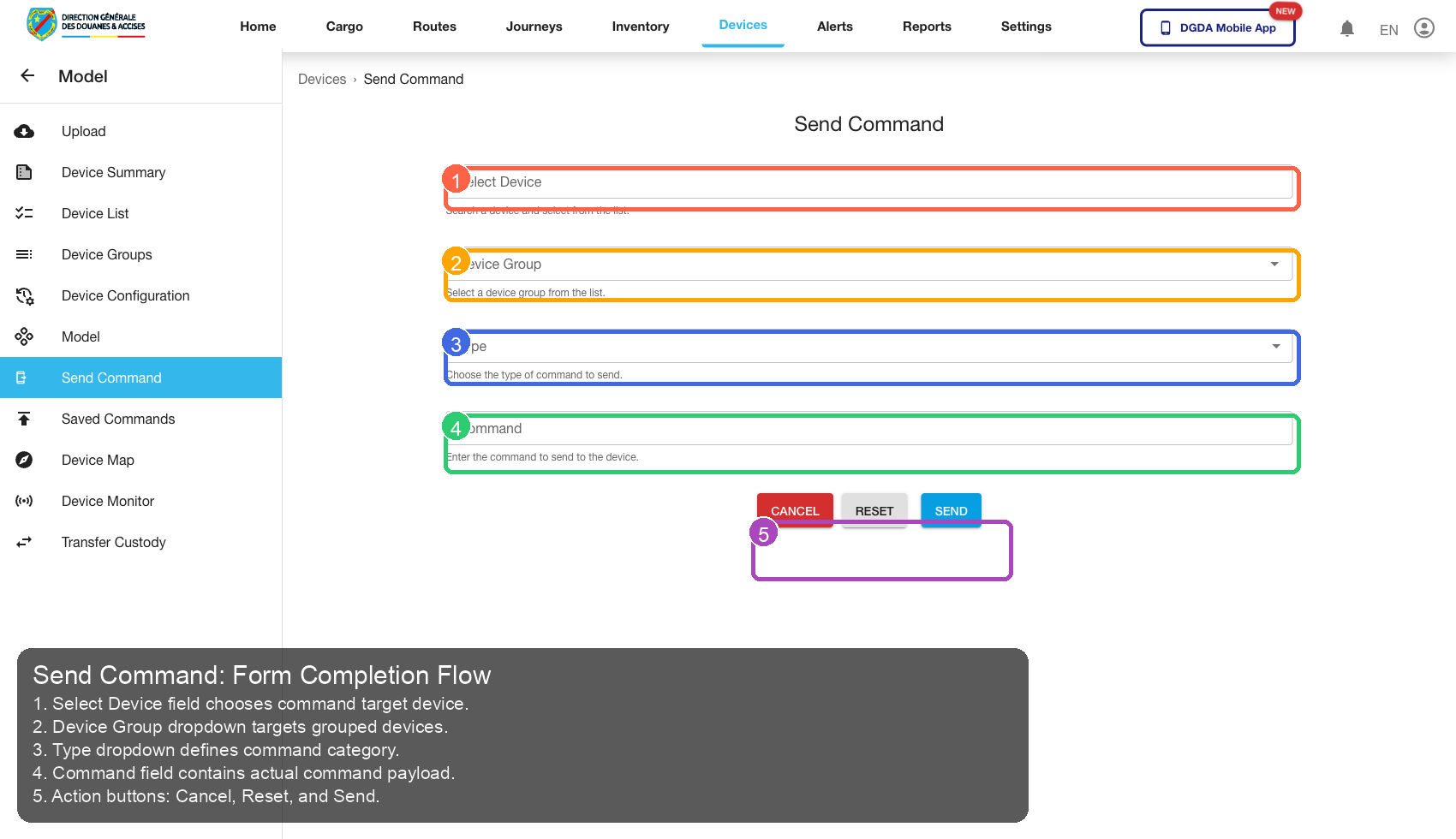

11.11 /device/send-command

Source Screenshot: 56-device-send-command.png

Route / Context: /device/send-command

Annotated 56-device-send-command.png

Callout Focus Training Instruction Validation
1 Navigation Context Select Device field chooses command target device. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Device Group dropdown targets grouped devices. Changing this control updates page state as expected.
3 Primary Workspace Type dropdown defines command category. Primary content renders without blank/error state.
4 Actions / Operations Command field contains actual command payload. Action executes expected operation without runtime error.
5 Additional Control Action buttons: Cancel, Reset, and Send. Control behaves consistently and remains interactive.

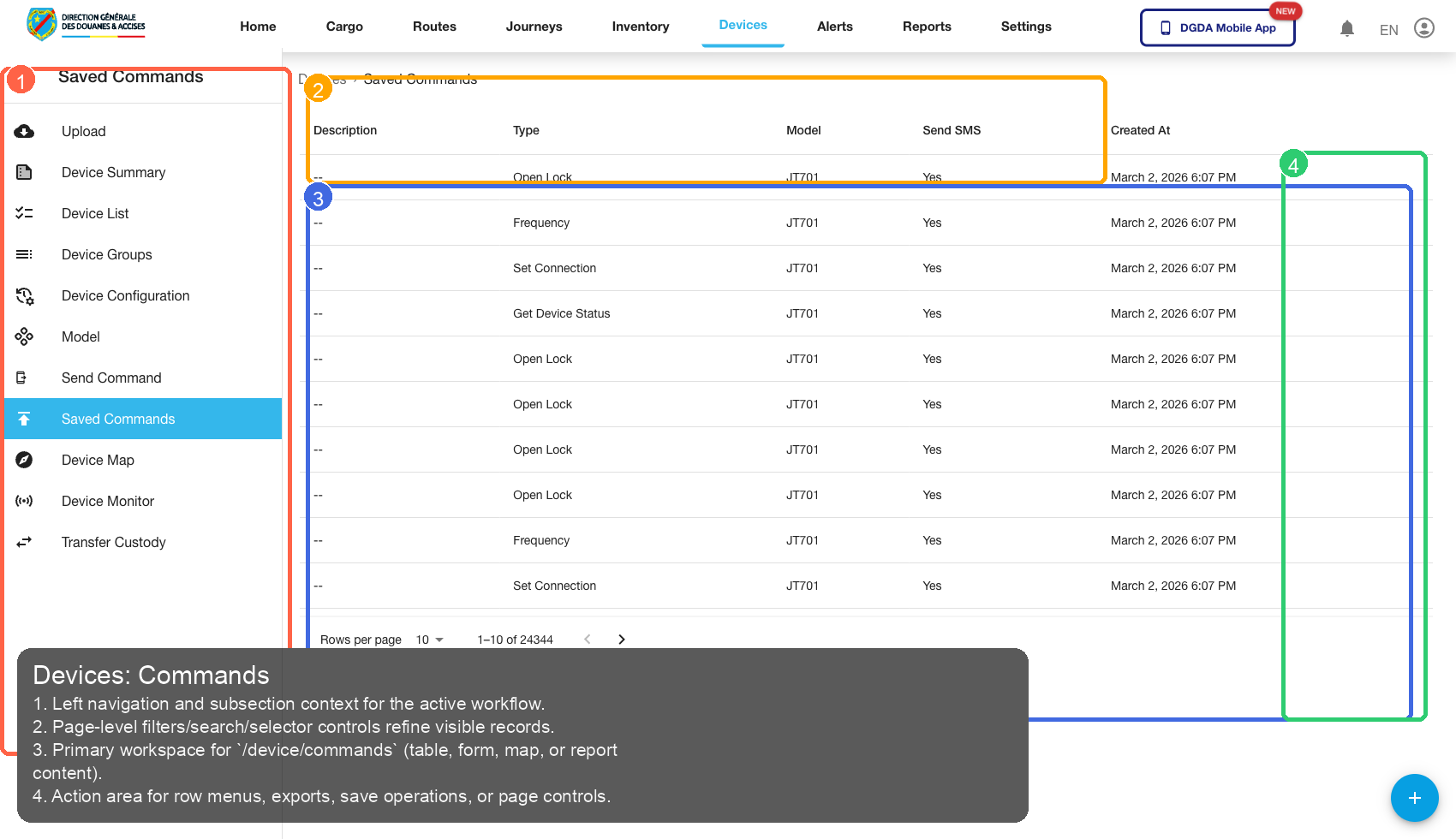

11.12 /device/commands

Source Screenshot: 57-device-commands.png

Route / Context: /device/commands

Annotated 57-device-commands.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/commands (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

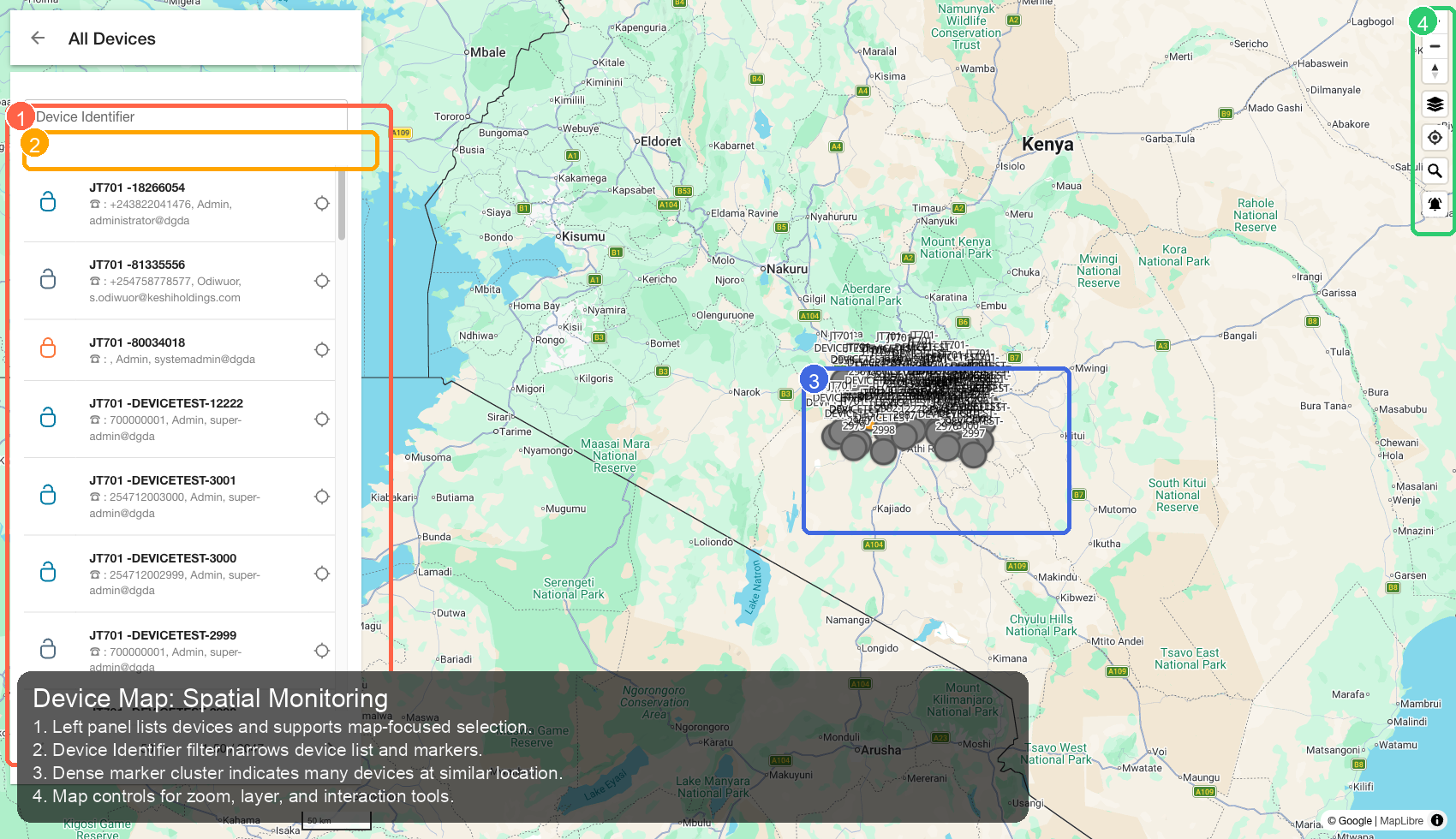

11.13 /device/device-map

Source Screenshot: 58-device-map.png

Route / Context: /device/device-map

Annotated 58-device-map.png

Callout Focus Training Instruction Validation
1 Navigation Context Left panel lists devices and supports map-focused selection. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Device Identifier filter narrows device list and markers. Changing this control updates page state as expected.
3 Primary Workspace Dense marker cluster indicates many devices at similar location. Primary content renders without blank/error state.
4 Actions / Operations Map controls for zoom, layer, and interaction tools. Action executes expected operation without runtime error.

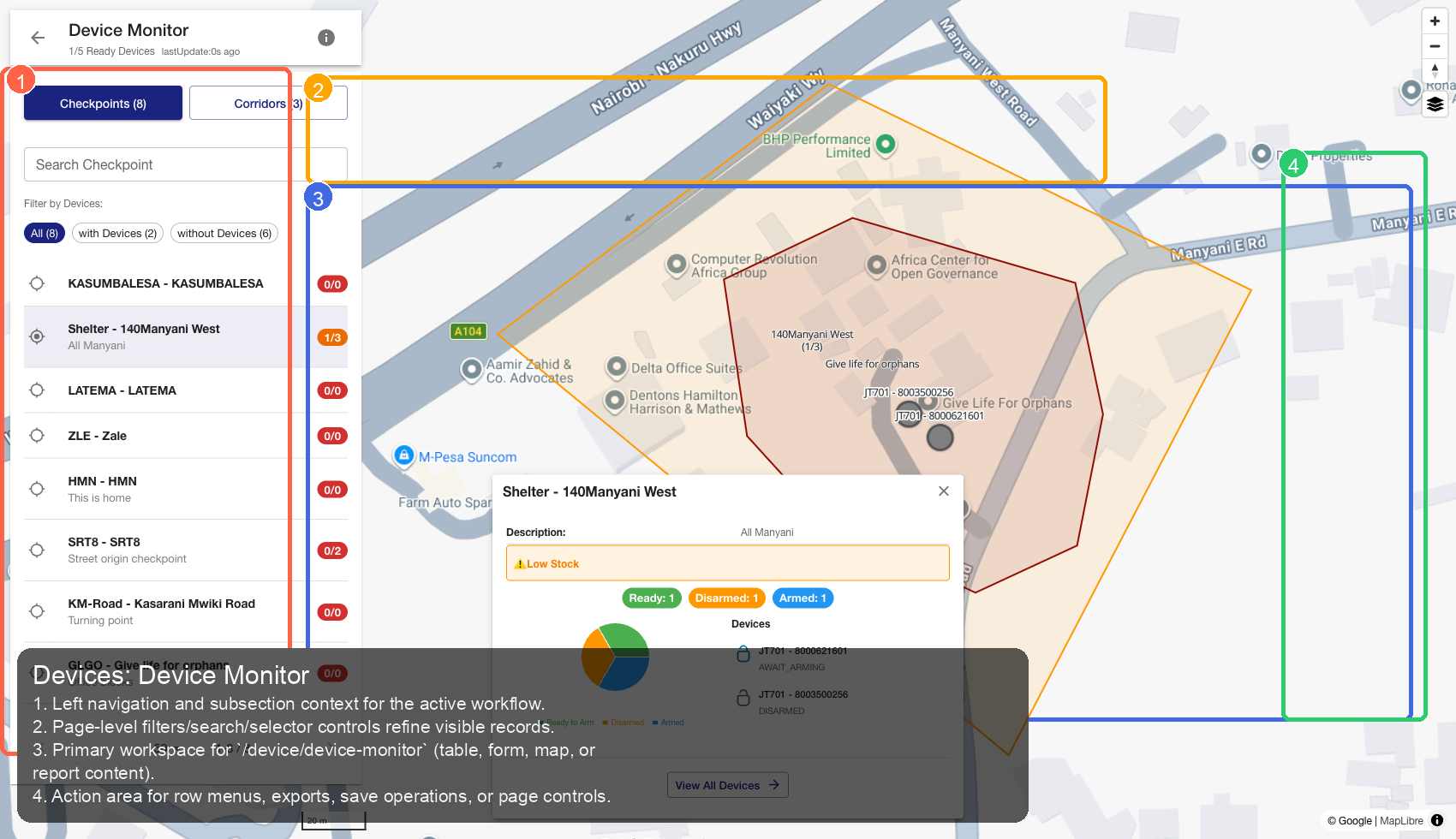

11.14 /device/device-monitor

Source Screenshot: 59-device-monitor.png

Route / Context: /device/device-monitor

Annotated 59-device-monitor.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/device-monitor (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

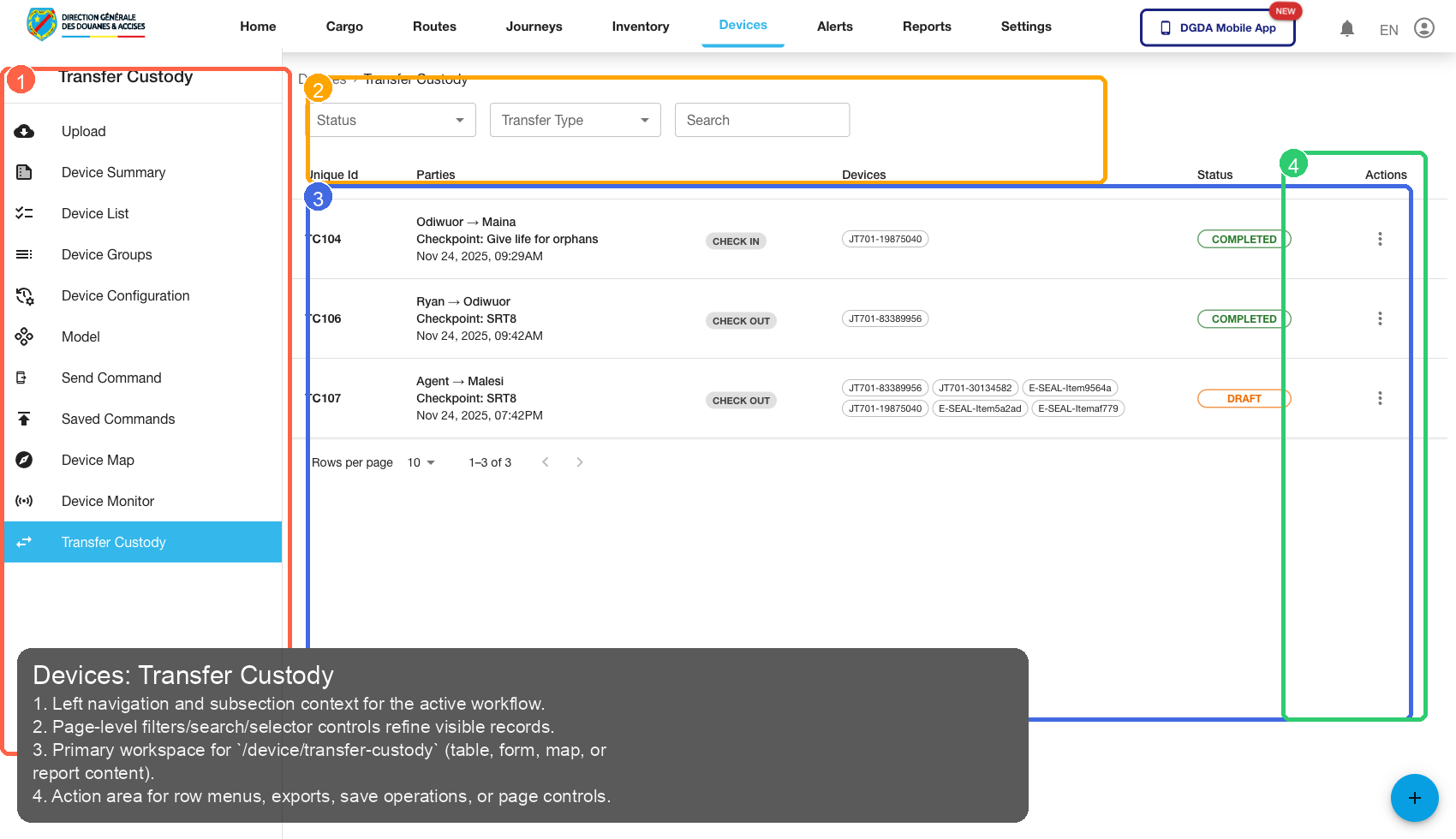

11.15 /device/transfer-custody

Source Screenshot: 60-device-transfer-custody.png

Route / Context: /device/transfer-custody

Annotated 60-device-transfer-custody.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/transfer-custody (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

11.16 /device/add-transfer-custody

Source Screenshot: 61-device-add-transfer-custody.png

Route / Context: /device/add-transfer-custody

Annotated 61-device-add-transfer-custody.png

Callout Focus Training Instruction Validation
1 Navigation Context Left navigation and subsection context for the active workflow. Correct navigation context is highlighted before workflow actions.
2 Filters / Inputs Page-level filters/search/selector controls refine visible records. Changing this control updates page state as expected.
3 Primary Workspace Primary workspace for /device/add-transfer-custody (table, form, map, or report content). Primary content renders without blank/error state.
4 Actions / Operations Action area for row menus, exports, save operations, or page controls. Action executes expected operation without runtime error.

Trainer Notes

  1. Run the guide top-to-bottom for new operators.
  2. Pair each annotated screenshot with live system navigation during onboarding.
  3. For report pages, allow extended load time before diagnosing failures.
  4. Keep known defect routes out of SOP until fixed and re-validated.
